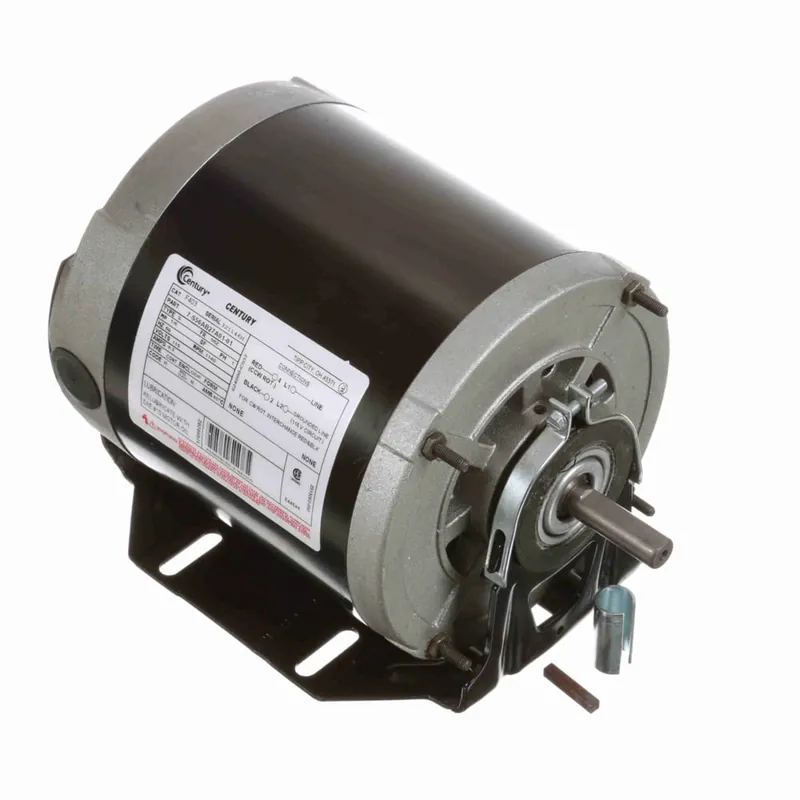

1/6HP 1PH 56Z 6P ODP 1140 115V

Description

Product Information

Brand Century
Mfr # F403
Wright’s # CEN F403
Country of Origin MEX

Specifications

C Dim 9.99″
Electrical Type Split Phase
Enclosure ODP
Frame 56Z
Frequency 60 Hz
HP 0.17 HP
HP2 1/6 HP
Insulation Class B
kW 0.13kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 6
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 4.3
Rated Voltage 115
Rotation Clockwise/Counterclockwise
RPM 1140
Service Factor 1.35
Shaft Diameter 0.5″
Speed 1140
Starting Method
