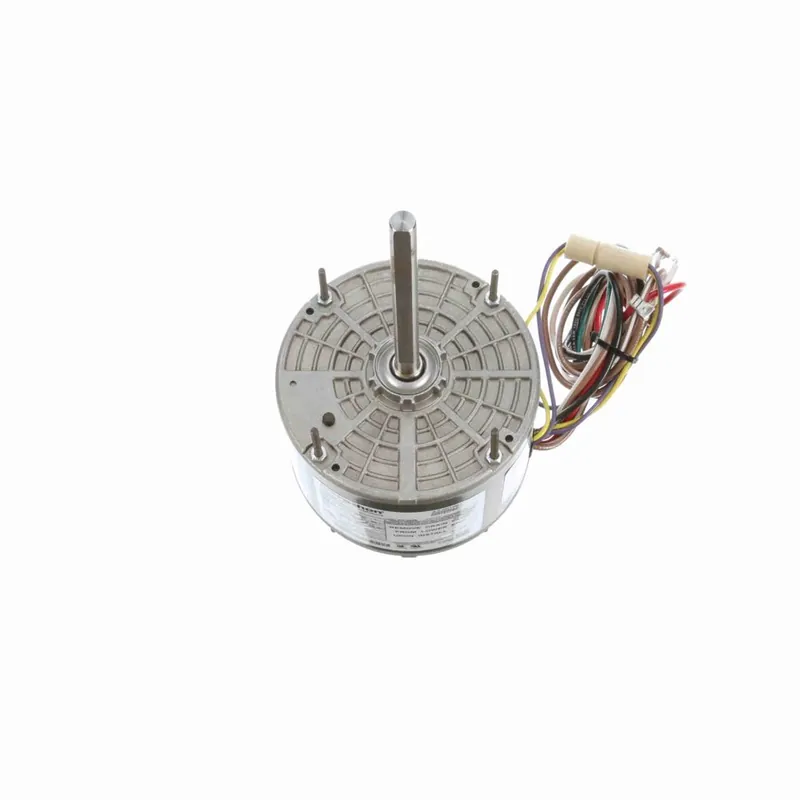

1/6HP 1PH 48Y TEAO 1200 2spd 208-230V AOL CF

Description

Product Information

Brand Leeson
Mfr # X429
Wright’s # LSN X429
Country of Origin MEX

Specifications

C Dim 10.5″
Electrical Type Permanent Split Capacitor
Enclosure Totally Enclosed Air Over
Full Load Efficiency 62.4
Frame 48
Frequency 60
HP 0.17 HP
HP2 1/6 HP
Insulation Class B
kW 0.13kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Round – Extended Studs
Overload Protection Automatic
Phase 1
Rated Current 1.3
Rated Voltage 208-230
Rotation Selective Counterclockwise
RPM 1075
Service Factor 1
Shaft Diameter 0.5″
Starting Method
