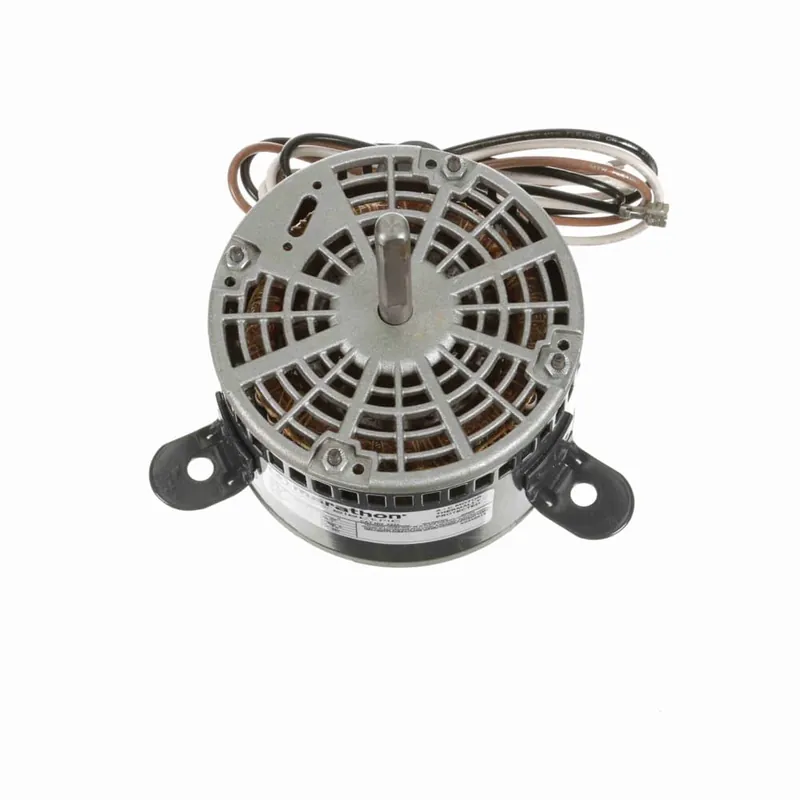

1/5HP PSC 48Z 6P OAO 1075 230V AOL CF

Description

Product Information

Brand Marathon
Mfr # X223
Wright’s # MAR X223
Country of Origin MEX

Specifications

C Dim 6.62″
Electrical Type Permanent Split Capacitor
Enclosure ODP
Full Load Efficiency 52.5
Frame 48Z
Frequency 60 Hz
HP 0.2 HP
HP2 1/5 HP
Insulation Class B
kW 0.15kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Three Lug Mount
Number of Poles 6
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 1.1
Rated Voltage 230
Rotation Fixed Counterclockwise
RPM 1075
Service Factor 1
Shaft Diameter 0.5″
Speed 1075
Starting Method
