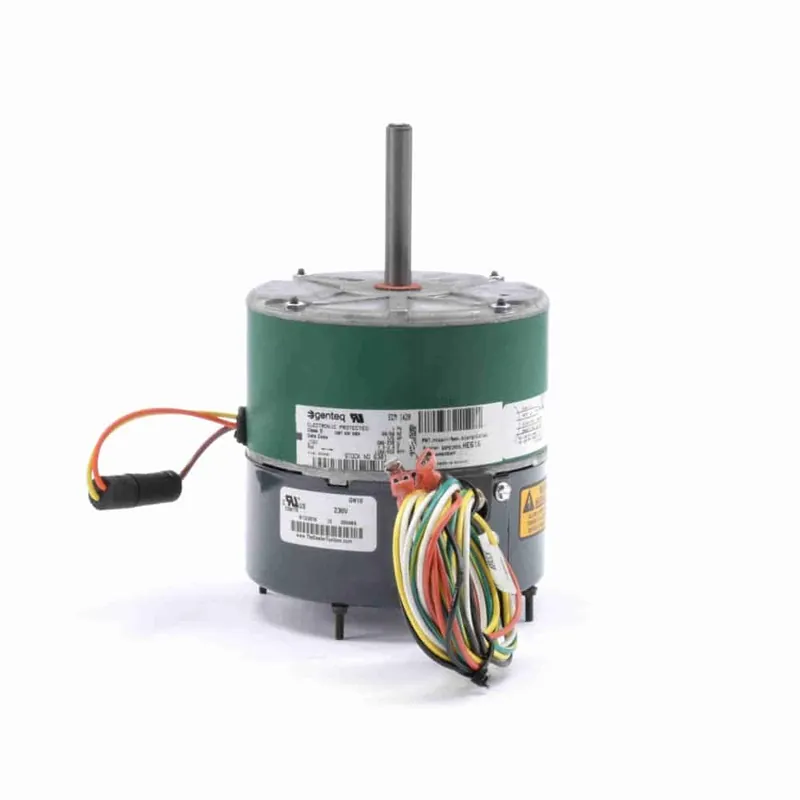

1/5HP ECM 5.6″ TE 2spd 850 REV 208-230V CF

Description

Product Information

Brand Genteq
Sub-Brand EVERGREEN® OM
Mfr # 6301
Wright’s # GEN 6301
Country of Origin MEX

Specifications

C Dim 8.49″
Electrical Type Electronically Commutated Motor
Enclosure TEAO
Frame 5.6″
Frequency 60/50 Hz
HP 0.2 HP
HP2 1/5 HP
Insulation Class B
kW 0.15kW
Material Rolled Steel
MaAmbient 60°C
Number of Poles 12
Number of Speeds 2
Overload Protection No Protection
Phase 1
Rated Current 2.8
Rated Voltage 208-230
Rotation Counterclockwise/Clockwise
RPM 850
Service Factor 1
Shaft Diameter 0.5″
Speed 850/1100
