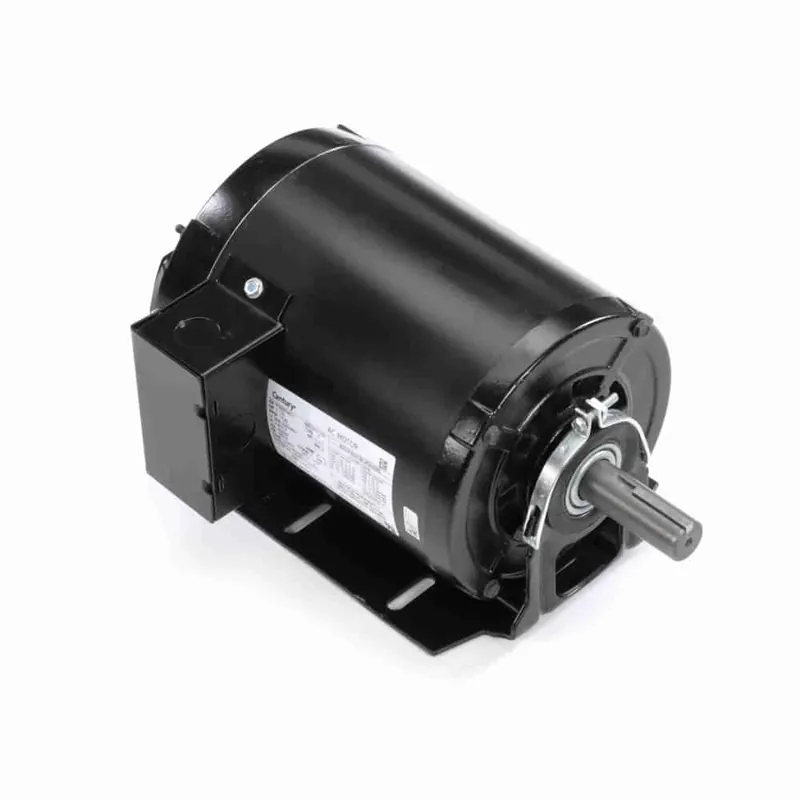

1.5HP 3PH 56HZ ODP 1725 208-230/460V BM

Description

Product Information

Brand Century
Mfr # RB3154AV1
Wright’s # CEN RB3154AV1
Country of Origin MEX

Specifications

C Dim 12.27″
Electrical Type Polyphase
Enclosure ODP
Frame 56HZ
Frequency 60 Hz
HP 1.5 HP
HP2 1.5 HP
Insulation Class B
kW 1.1kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 3
Rated Current 4.6/2.3
Rated Voltage 208-230/460
Rotation Reversible
RPM 1725
Service Factor 1.15
Shaft Diameter 0.875″
Speed 1725
Starting Method
