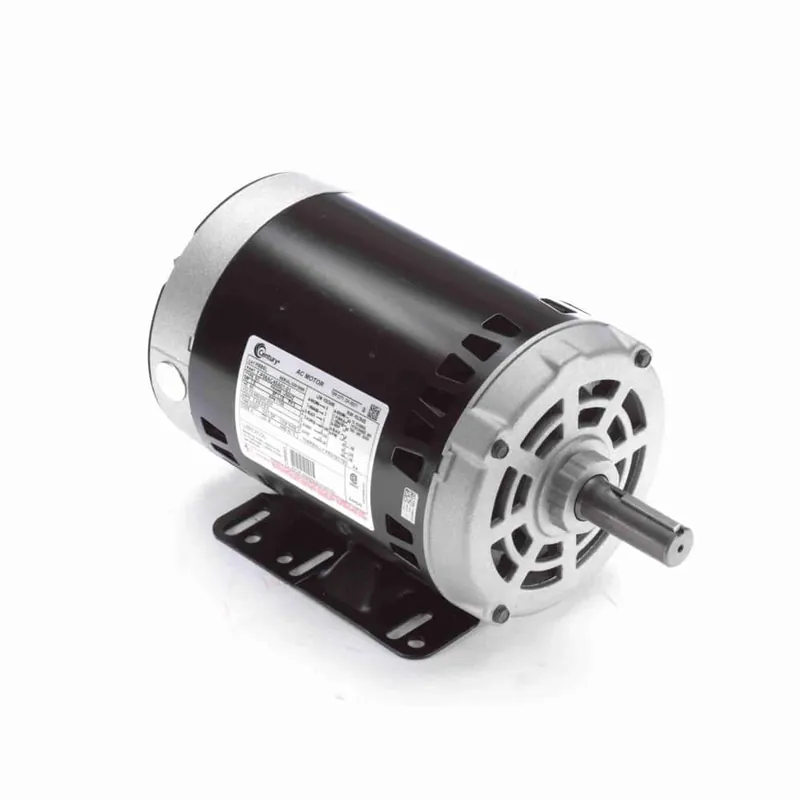

1.5HP 3PH 56HZ 4P ODP 1800 200-230/460V AOL

Description

Product Information

Brand Century
Mfr # H885L
Wright’s # CEN H885L
Country of Origin MEX

Specifications

C Dim 12.81″
Electrical Type Polyphase, Induction Type, Single Or Dual Voltage
Enclosure ODP
Full Load Efficiency 70
Frame 56HZ
Frequency 60 Hz
HP 1.5 HP
HP2 1.5 HP
Insulation Class B
kW 1.1kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Thermally Protected
Phase 3
Rated Current 2.8/5.0-5.6
Rated Voltage 200-230/460
Rotation Reversible Counterclockwise
RPM 1725
Service Factor 1.15
Shaft Diameter 0.875″
Speed 1800
Starting Method
