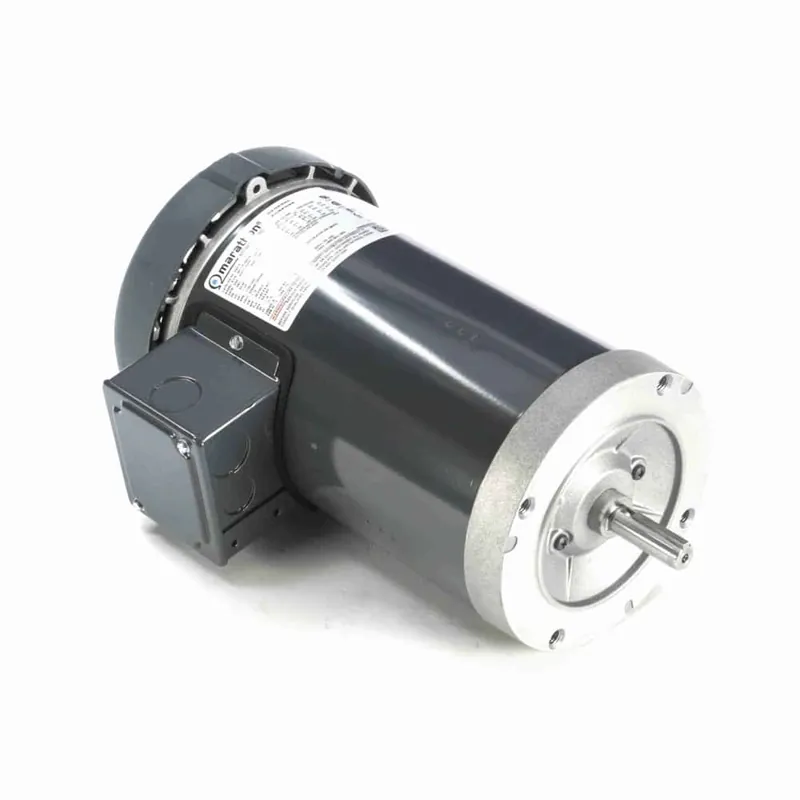

1.5HP 3PH 56C 4P TEFC 1800 230/460V NB

Description

Product Information

Brand Marathon
Sub-Brand XRI® General Purpose
Mfr # G541A
Wright’s # MAR G541A
Country of Origin MEX

Specifications

C Dim 14.65″
Electrical Type Squirrel Cage Induction Run
Enclosure ODP
Full Load Efficiency 86.5
Frame 56C
Frequency 60 Hz
HP 1.5 HP
HP2 1-1/2 HP
Insulation Class B
kW 1.1kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Round
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 4.6/2.3 & 5.4/2.7
Rated Voltage 230/460
Rotation Reversible
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625″
Speed 1725 & 1425
Starting Method
