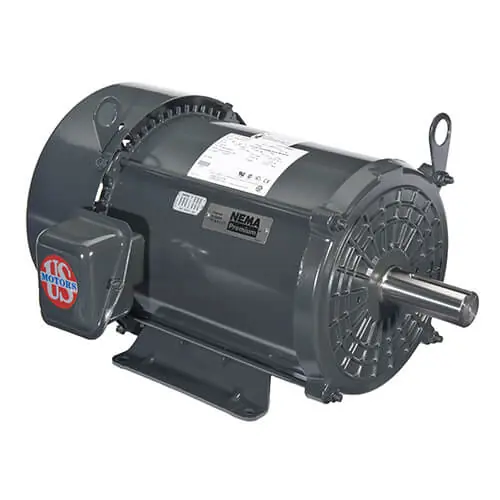

1.5HP 3PH 56C 3600 TEFC 208-230/460V NB

Description

Product Information

Brand US Motors
Mfr # T32S1ACR
Wright’s # USM T32S1ACR
Country of Origin MEX

Specifications

C Dim 11.88″
Electrical Type Polyphase
Enclosure TEFC
Frame 56C
Frequency 60 Hz
HP 1.5 HP
HP2 1-1/2 HP
Insulation Class B
kW 1.12kW
MaAmbient 40°C
Mounting Type C-FACE
Number of Poles 2
Number of Speeds 1
Overload Protection None
Phase 3
Rated Current 4.7-4.5/2.2
Rated Voltage 208-230/460V
RPM 3450
Service Factor 1.15
