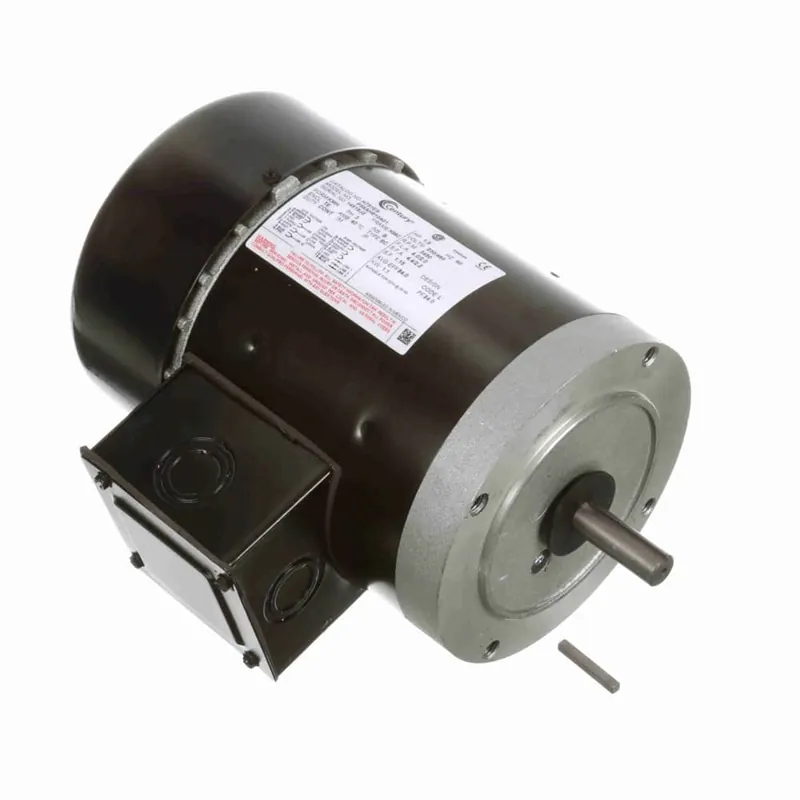

1.5HP 3PH 56C 2P TEFC 3450 230/460V

Description

Product Information

Brand Century
Mfr # H751ES
Wright’s # CEN H751ES
Country of Origin MEX

Specifications

C Dim 11.71″
Electrical Type Polyphase, Induction Type, Single Or Dual Voltage
Enclosure TEFC
Full Load Efficiency 84
Frame 56C
Frequency 60 Hz
HP 1.5 HP
HP2 1.5 HP
Insulation Class B
kW 1.1kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 4.0/2.0
Rated Voltage 230/460
Rotation Reversible Counterclockwise
RPM 3450
Service Factor 1.15
Shaft Diameter 0.625″
Speed 3450
Starting Method
