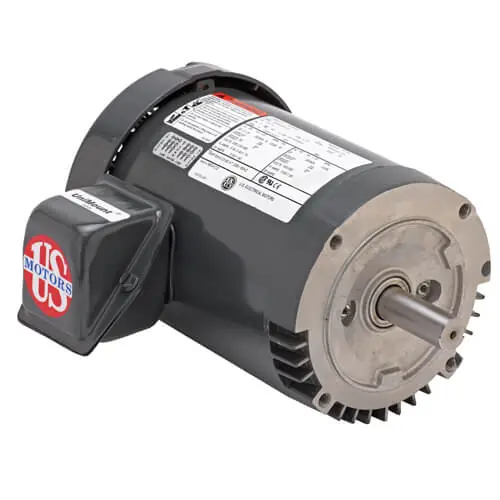

1.5HP 3PH 56C 1800 TEFC 208-230/460V NB

Description

Product Information

Brand US Motors
Mfr # U32P2DFCR
Wright’s # USM U32P2DFCR
Country of Origin MEX

Specifications

C Dim 13.1″
Electrical Type Polyphase
Enclosure TEFC
Frame 56C
Frequency 60/50 Hz
HP 1.5 HP
HP2 1-1/2 HP
Insulation Class F
kW 1.12kW
MaAmbient 40°C
Mounting Type HORZ-FOOTLESS
Number of Poles 4
Number of Speeds 1
Overload Protection None
Phase 3
Rated Current 4.6-4.3/2.2
Rated Voltage 208-230/460V
RPM 1760
Service Factor 1.25
