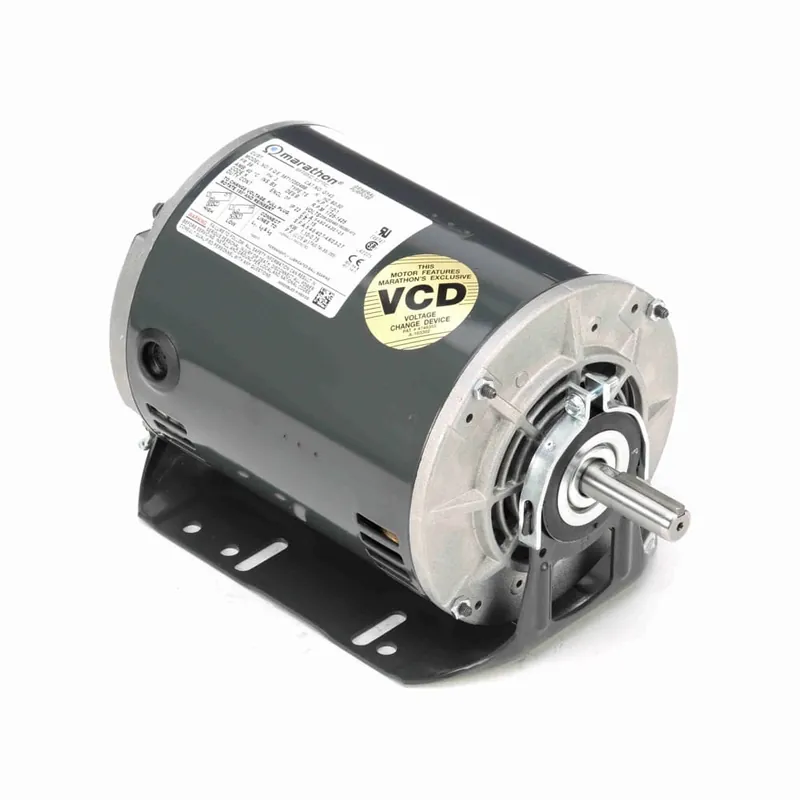

1.5HP 3PH 56 ODP 1800 208-230/460V BM

Description

Product Information

Brand Marathon
Mfr # G143
Wright’s # MAR G143
Country of Origin MEX

Specifications

C Dim 11.35″
Electrical Type Squirrel Cage Induction Run
Enclosure ODP
Full Load Efficiency 80
Frame 56
Frequency 60 Hz
HP 1.5 HP
HP2 1-1/2 HP
Insulation Class B
kW 1.1kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Resilient Base
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 3
Rated Current 5-4.8/2.4 & 4.2/2.1-2.5
Rated Voltage 208-230/460
Rotation Reversible
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625″
Speed 1725 & 1425
Starting Method
