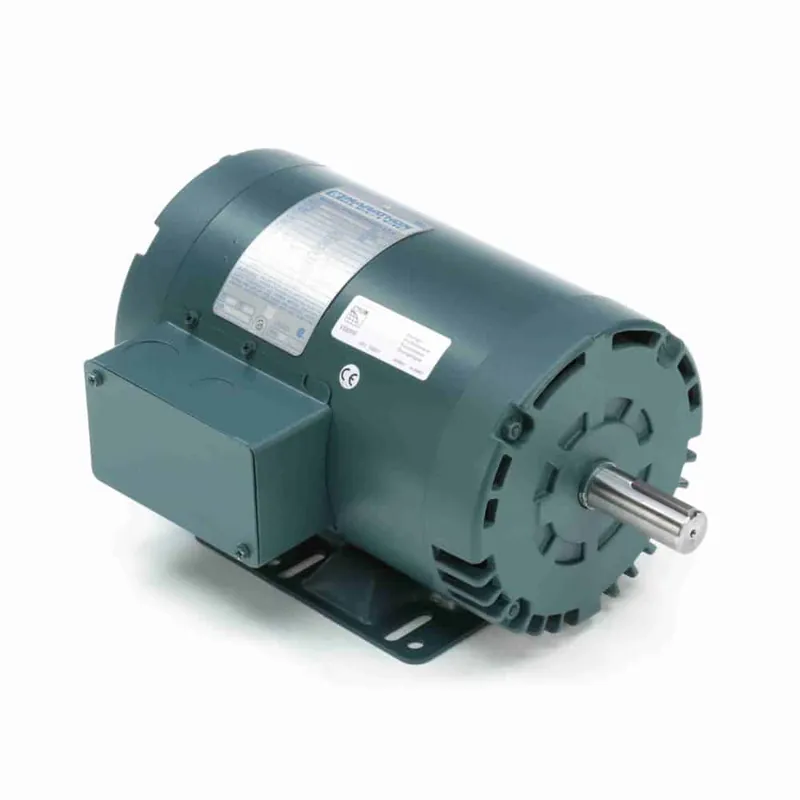

1.5HP 3PH 145T 4P ODP 1750 230/460V TS WB

Description

Product Information

Brand Marathon
Sub-Brand XRI® General Purpose
Mfr # U759
Wright’s # MAR U759
Country of Origin USA

Specifications

C Dim 12.62″
Electrical Type Squirrel Cage Inverter Rated
Enclosure ODP
Full Load Efficiency 86.5
Frame 145T
Frequency 60 Hz
HP 1.5 HP
HP2 1-1/2 HP
Insulation Class F
kW 1.1kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection Thermostat
Phase 3
Rated Current 4.8/2.4 & 3.6/1.8
Rated Voltage 230/460
Rotation Reversible
RPM 1750
Service Factor 1.15
Shaft Diameter 0.875″
Speed 1750 & 1450
Starting Method
