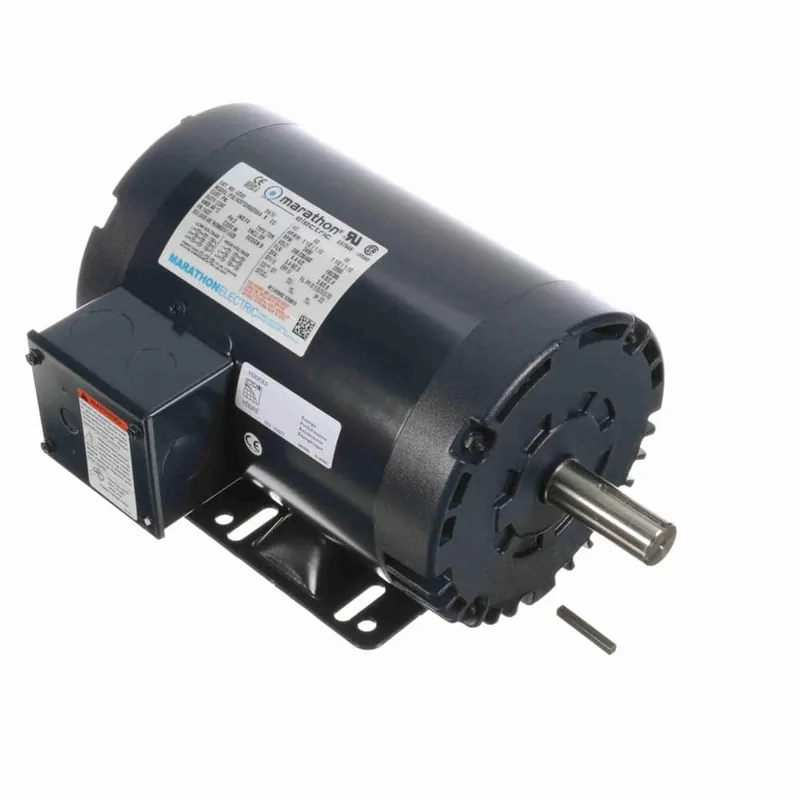

1.5HP 3PH 143T 2P ODP 3490 230/460V TS WB

Description

Product Information

Brand Marathon
Sub-Brand XRI® General Purpose
Mfr # U245
Wright’s # MAR U245
Country of Origin USA

Specifications

C Dim 12.19″
Electrical Type Squirrel Cage Induction Run
Enclosure ODP
Full Load Efficiency 84
Frame 143T
Frequency 60 Hz
HP 1.5 HP
HP2 1-1/2 HP
Insulation Class F
kW 1.1kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 2
Number of Speeds 1
Overload Protection Thermostat
Phase 3
Rated Current 4/2 & 4.8/2.4
Rated Voltage 230/460
Rotation Reversible
RPM 3490
Service Factor 1.15
Shaft Diameter 0.875″
Speed 3490 & 2890
Starting Method
