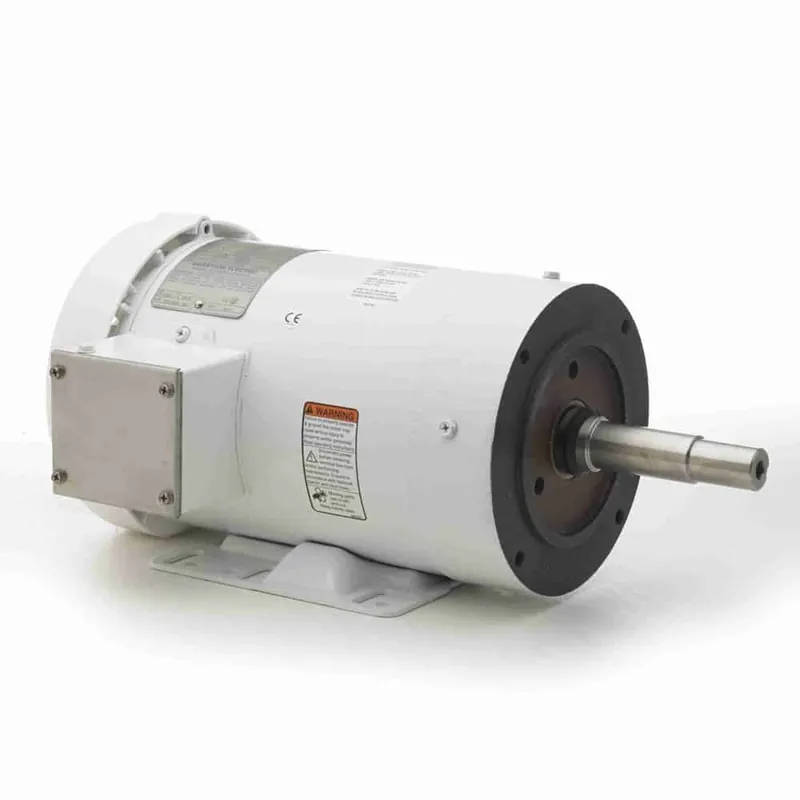

1.5HP 3PH 143JM 2P TEFC 3490 230/460V WB WD

Description

Product Information

Brand Marathon
Sub-Brand PowerWash™ XT Wash Down Duty™
Mfr # N202
Wright’s # MAR N202
Country of Origin USA

Specifications

C Dim 15.43″
Electrical Type Squirrel Cage Induction Run
Enclosure ODP
Full Load Efficiency 82.5
Frame 143JM
Frequency 60 Hz
HP 1.5 HP
HP2 1-1/2 HP
Insulation Class F
kW 1.1kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 2
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 4.4-4.0/2.0
Rated Voltage 230/460
Rotation Reversible
RPM 3490
Service Factor 1.15
Shaft Diameter 0.875″
Speed 3490
Starting Method
