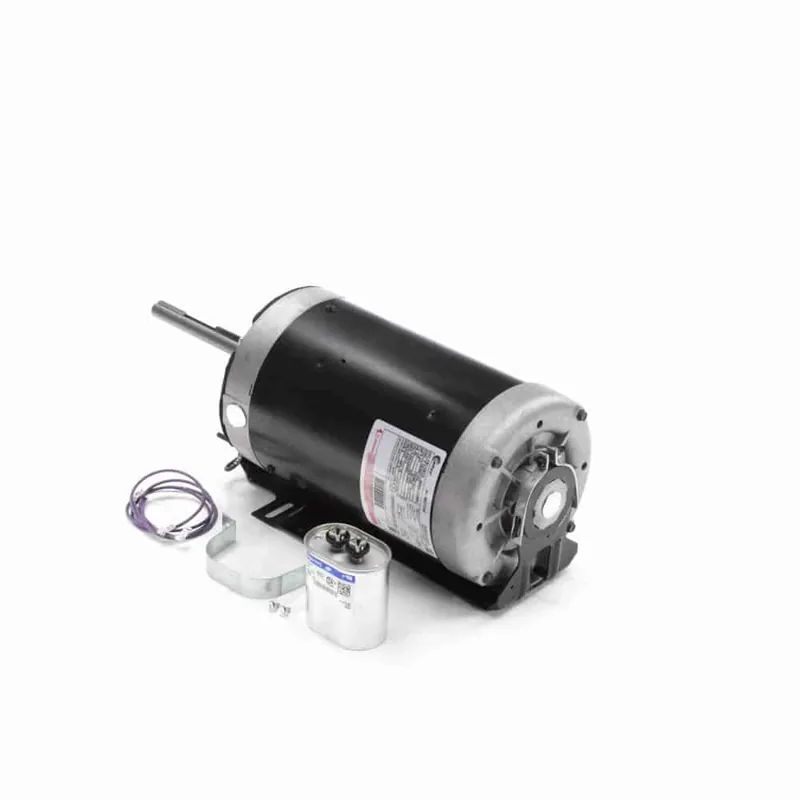

1.5HP 1PH 56Y TE 1075 208-230/460V CF

Description

Product Information

Brand Century
Mfr # FB1156TE
Wright’s # CEN FB1156TE
Country of Origin MEX

Specifications

C Dim 18.06″
Electrical Type Permanent Split Capacitor, Single Or Dual Voltage
Enclosure TEAO
Frame 56Y
Frequency 60 Hz
HP 1.5 HP
HP2 1.5 HP
Insulation Class B
kW 1.1kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 6
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 6.6/3.3
Rated Voltage 208-230/460
Rotation Reversible Clockwise
RPM 1075
Service Factor 1
Shaft Diameter 0.625″
Speed 1075
Starting Method
