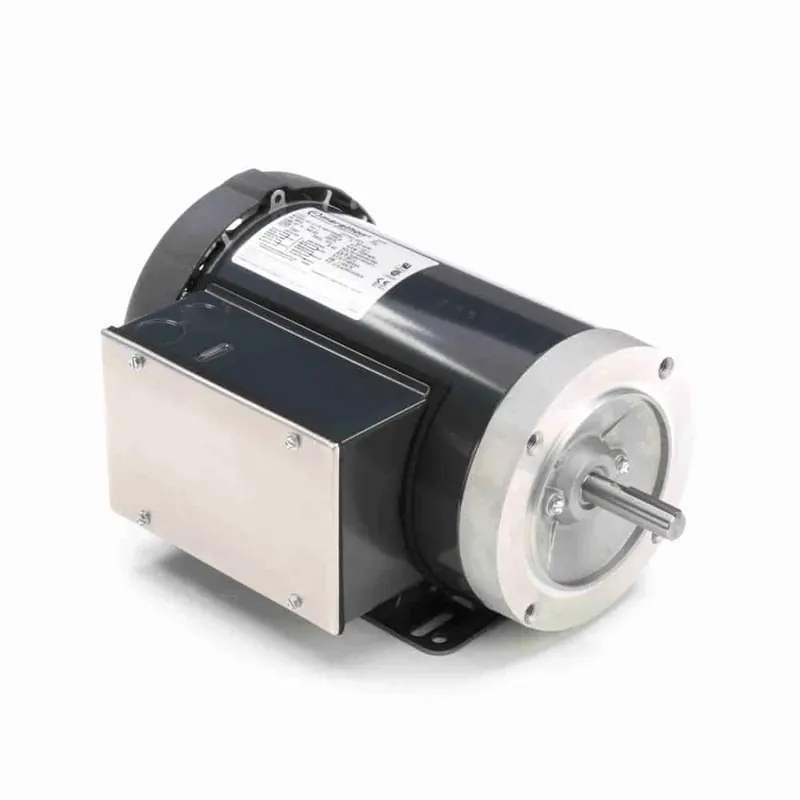

1.5HP 1PH 56HC 4P TEFC 1800 115/208-230V WB

Description

Product Information

Brand Marathon
Mfr # G574
Wright’s # MAR G574
Country of Origin MEX

Specifications

C Dim 13.81″
Electrical Type Capacitor Start Capacitor Run
Enclosure ODP
Full Load Efficiency 80
Frame 56HC
Frequency 60 Hz
HP 1.5 HP
HP2 1-1/2 HP
Insulation Class B
kW 1.1kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Bolt-on Base
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 15.2/8.2-7.6 & 15.6/7.8
Rated Voltage 115/208-230
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625″
Speed 1725 & 1425
Starting Method
