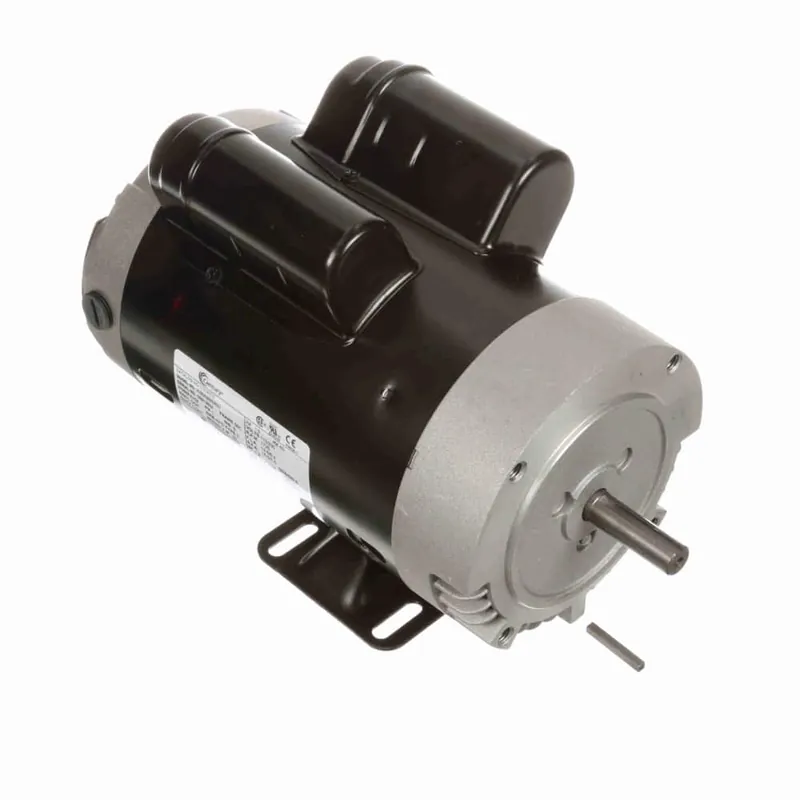

1.5HP 1PH 56C 4P ODP 1725 115/230V

Description

Product Information

Brand Century
Mfr # C508ES
Wright’s # CEN C508ES
Country of Origin MEX

Specifications

C Dim 13.69″
Electrical Type Capacitor Start Capacitor Run
Enclosure ODP
Frame 56C
Frequency 60 Hz
HP 1.5 HP
HP2 1.5 HP
Insulation Class B
kW 1.1kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 12.6/6.3
Rated Voltage 115/230
Rotation Counterclockwise Lead End
RPM 1725
Service Factor 1.2
Shaft Diameter 0.625″
Speed 1725
Starting Method
