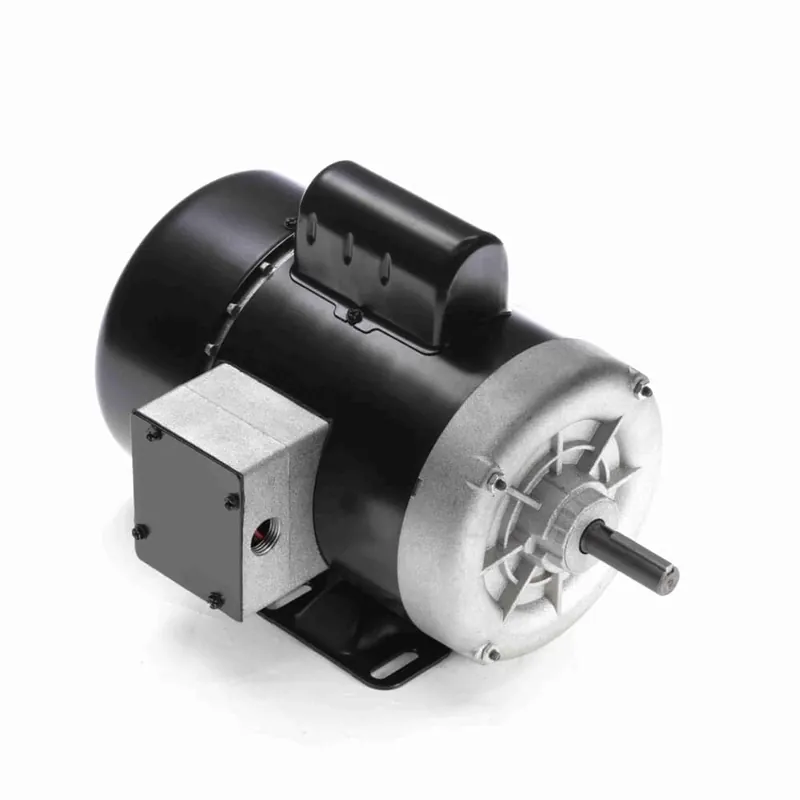

1.5HP 1PH 56 2P TEFC 3450 115/208-230V Farm

Description

Product Information

Brand Century
Mfr # B762
Wright’s # CEN B762
Country of Origin MEX

Specifications

C Dim 12.65″
Electrical Type Capacitor Start, Induction Run, Single Or Dual Voltage
Enclosure TEFC
Frame 56
Frequency 60 Hz
HP 1.5 HP
HP2 1.5 HP
Insulation Class B
kW 1.1kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 8.3-8.0/16.0
Rated Voltage 115/208-230
Rotation Reversible Counterclockwise
RPM 3450
Service Factor 1.15
Shaft Diameter 0.625″
Speed 3450
Starting Method
