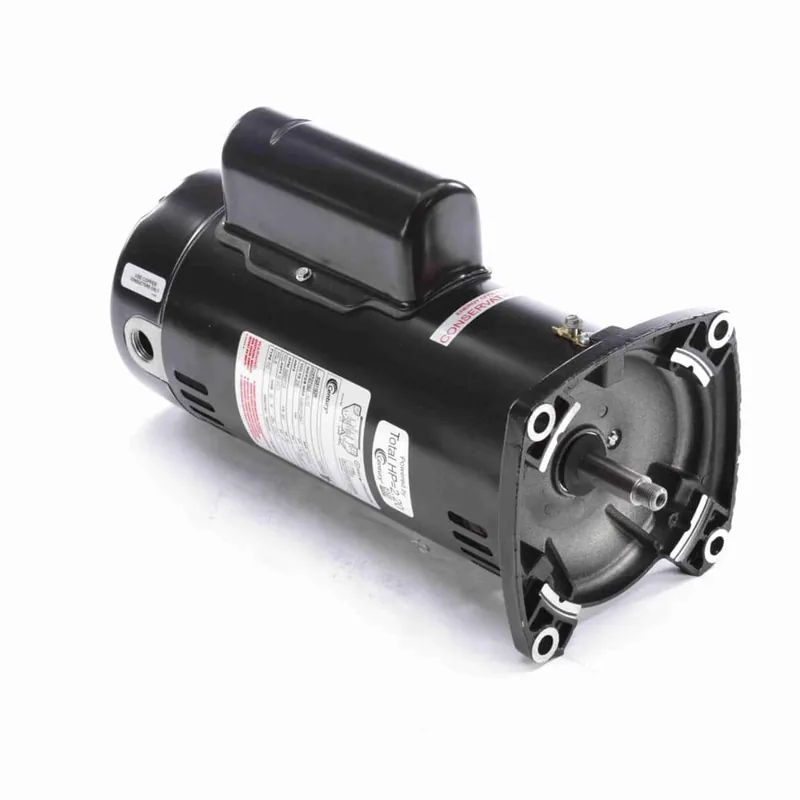

1.5HP 1PH 48Y 2P ODP 2spd 3450 230V AOL UL1081
Description
Product Information
Brand Century
Mfr # SQS1152R
Wright’s # CEN SQS1152R
Country of Origin MEX
Specifications
C Dim 14.26″
Electrical Type Psc Low Speed, Cap Start High Speed
Enclosure ODP
Frame 48Y
Frequency 60 Hz
HP 1.5 HP
HP2 1.5-.19 HP
Insulation Class B
kW 1.1kW
Material Rolled Steel
MaAmbient 50°C
Number of Poles 2
Number of Speeds 2
Overload Protection Thermally Protected
Phase 1
Rated Current 10.0/3.0
Rated Voltage 230
Rotation Counterclockwise Pump End
RPM 3450
Service Factor 1.47
Shaft Diameter 0.625″
Speed 3450/1725
Starting Method
