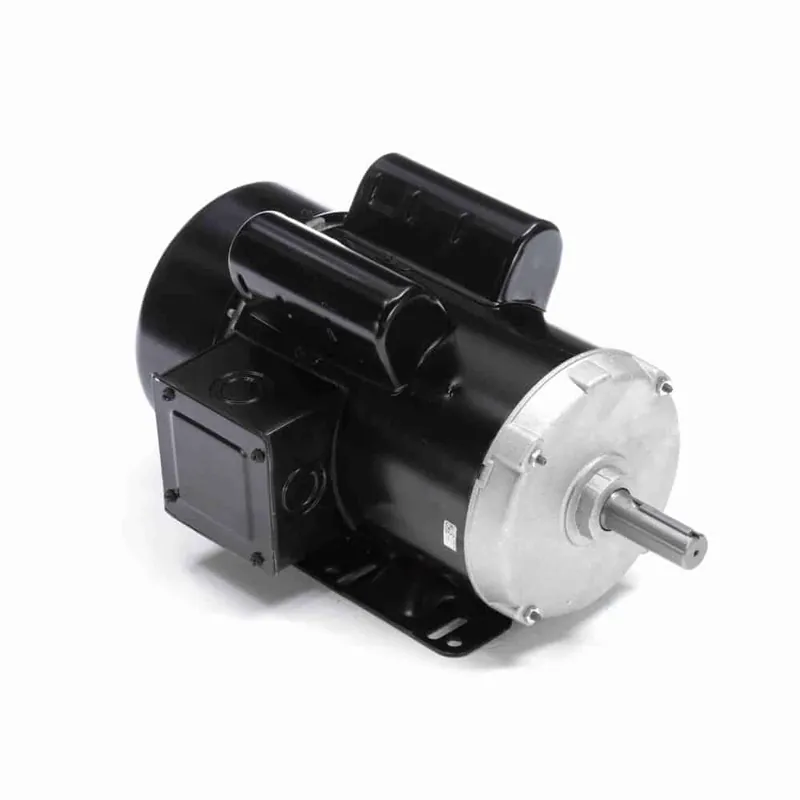

1.5HP 1PH 145T 4P TEFC 1745 115/208-230V

Description

Product Information

Brand Century
Mfr # K101
Wright’s # CEN K101
Country of Origin MEX

Specifications

C Dim 14.98″
Electrical Type Capacitor Start, Capacitor Run, Single Or Dual Voltage
Enclosure TEFC
Frame 145T
Frequency 60 Hz
HP 1.5 HP
HP2 1.5 HP
Insulation Class B
kW 1.1kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 7.7-7.5/15.0
Rated Voltage 115/208-230
Rotation Reversible Counterclockwise
RPM 1745
Service Factor 1.15
Shaft Diameter 0.875″
Speed 1745
Starting Method
