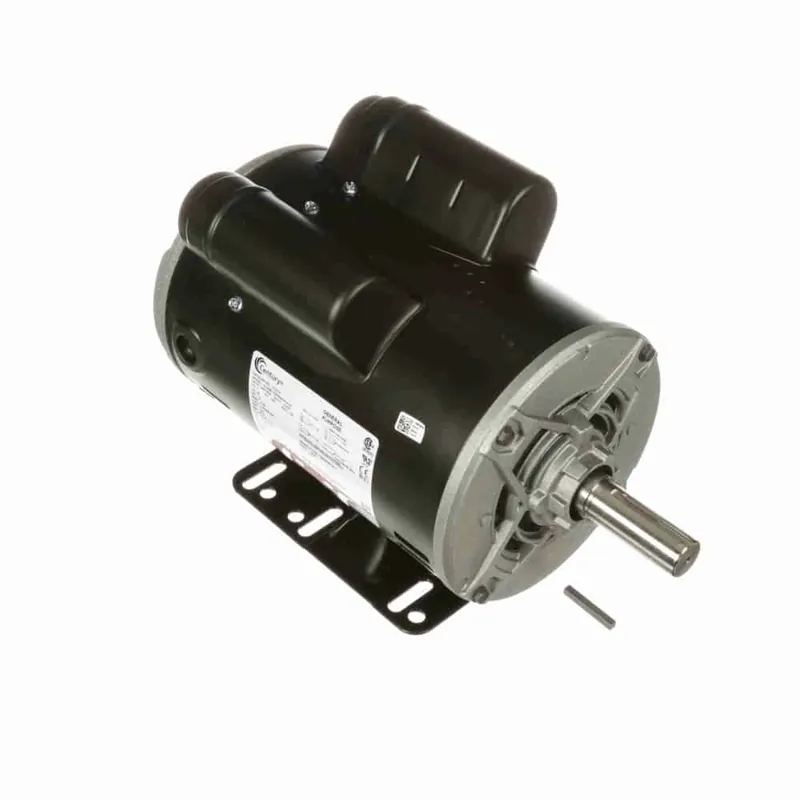

1.5HP 1PH 145T 4P ODP 1800 115/208-230V

Description

Product Information

Brand Century
Mfr # V101V1
Wright’s # CEN V101V1
Country of Origin MEX

Specifications

C Dim 13.36″
Electrical Type Capacitor Start Capacitor Run
Enclosure ODP
Full Load Efficiency 81.5
Frame 145T
Frequency 60 Hz
HP 1.5 HP
HP2 1.5 HP
Insulation Class B
kW 1.1kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 13.0/7.0-6.5
Rated Voltage 115/208-230
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1.2
Shaft Diameter 0.875″
Speed 1800
Starting Method
