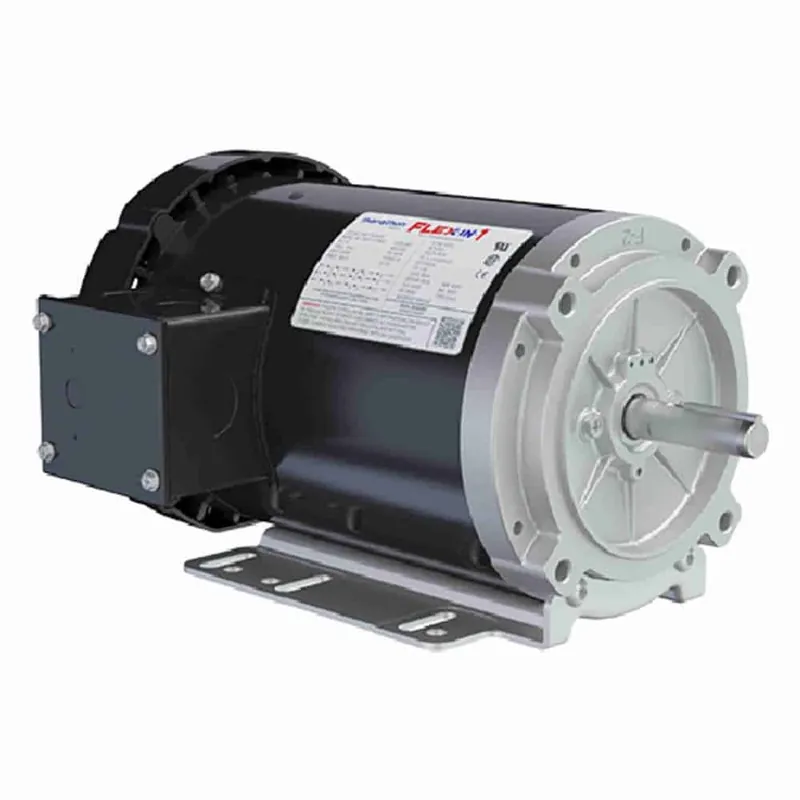

1.50HP 3PH 56HC 2P TEFC 3450 230/460V WB

Description

Product Information

Brand Leeson
Sub-Brand FLEX-IN-1™
Mfr # FX32BK002
Wright’s # LSN FX32BK002
Country of Origin MEX

Specifications

Electrical Type Squirrel Cage Inverter Rated
Enclosure TEFC
Full Load Efficiency 84
Frame 56HC
Frequency 60 Hz
HP 1.5 HP
HP2 1-1/2 HP
Insulation Class F
kW 1.1kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Bolt-on Base
Number of Poles 2
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 4/2 & 4.6/2.3
Rated Voltage 230/460
Rotation Reversible
RPM 3450
Service Factor 1.15
Shaft Diameter 0.625″
Speed 3450 & 2850
Starting Method
