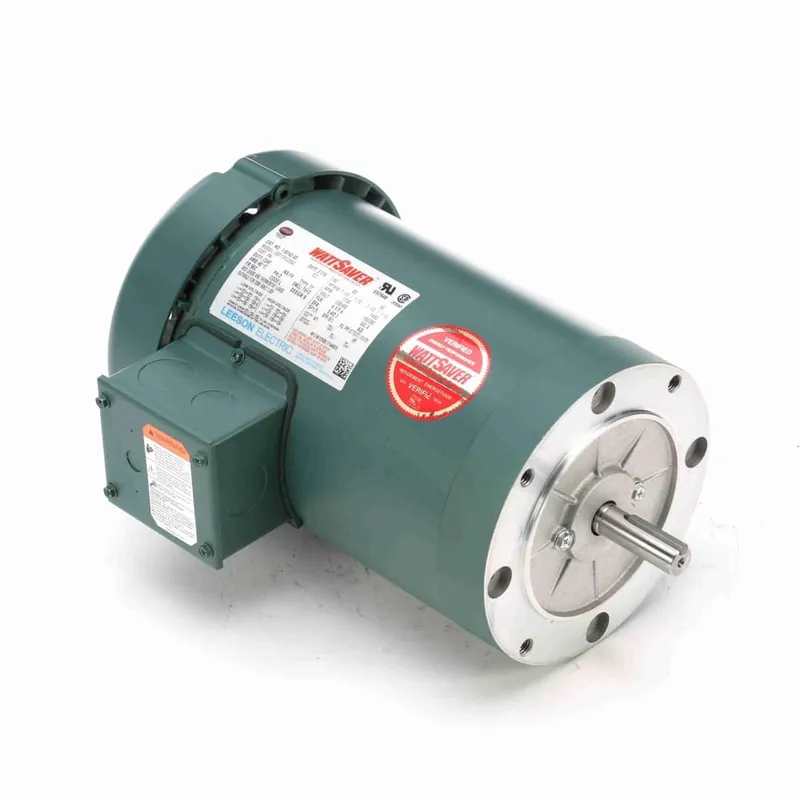

1.50HP 3PH 56C 4P TEFC 1750 230/460V TS NB

Description

Product Information

Brand Leeson
Mfr # 116743.00
Wright’s # LSN 116743.00
Country of Origin USA

Specifications

C Dim 12.98″
Electrical Type Squirrel Cage Induction Run
Enclosure TEFC
Full Load Efficiency 86.5
Frame 56C
Frequency 60 Hz
HP 1.5 HP
HP2 1-1/2 HP
Insulation Class F
kW 1.1kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Round
Number of Poles 4
Number of Speeds 1
Overload Protection Thermostat
Phase 3
Rated Current 4.8/2.4 & 5/2.5
Rated Voltage 230/460
Rotation Reversible
RPM 1750
Service Factor 1.25
Shaft Diameter 0.625″
Speed 1750 & 1450
Starting Method
