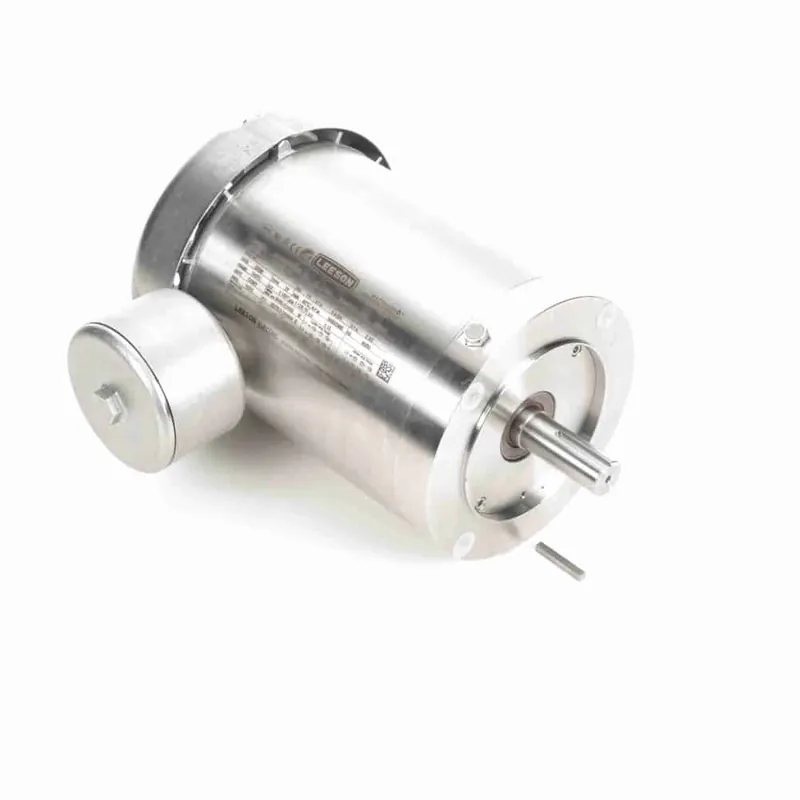

1.50HP 3PH 143TC 2P TEFC 3490 208-230/460V NB SS

Description

Product Information

Brand Leeson
Mfr # 122207.00
Wright’s # LSN 122207.00
Country of Origin USA

Specifications

C Dim 12″
Electrical Type Squirrel Cage Inverter Rated
Enclosure TEFC
Full Load Efficiency 84
Frame 143TC
Frequency 60 Hz
HP 1.5 HP
HP2 1-1/2 HP
Insulation Class F
kW 1.1kW
Material Stainless Steel
MaAmbient 40°C
Mounting Type Round
Number of Poles 2
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 4.4-4/2 & 3.6/1.8
Rated Voltage 208-230/460
Rotation Reversible
RPM 3490
Service Factor 1.15
Shaft Diameter 0.875″
Speed 3490 & 2890
Starting Method
