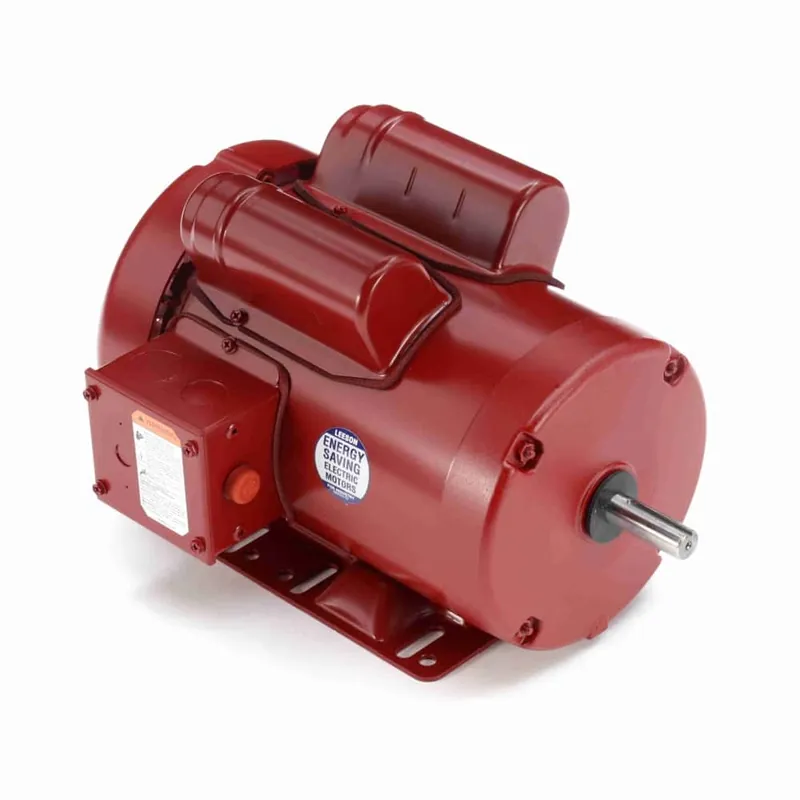

1.50HP 1PH 56H 4P TEFC 1725 115/230V MOL Farm

Description

Product Information

Brand Leeson
Mfr # 110089.00
Wright’s # LSN 110089.00
Country of Origin USA

Specifications

C Dim 12.99″
Electrical Type Capacitor Start Capacitor Run
Enclosure TEFC
Full Load Efficiency 79
Frame 56H
Frequency 60 Hz
HP 1.5 HP
HP2 1-1/2 HP
Insulation Class F
kW 1.1kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection Manual
Phase 1
Rated Current 17.2/8.6
Rated Voltage 115/230
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625″
Speed 1725
Starting Method
