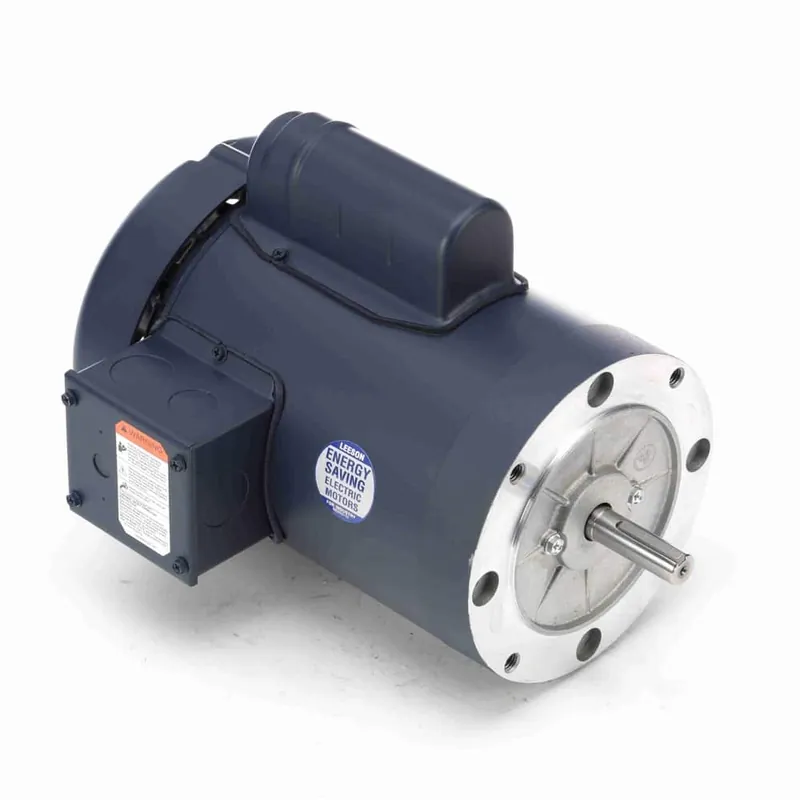

1.50HP 1PH 56C 2P TEFC 3450 115/230V NB

Description

Product Information

Brand Leeson
Mfr # 110419.00
Wright’s # LSN 110419.00
Country of Origin USA

Specifications

C Dim 12.48″
Electrical Type Capacitor Start Induction Run
Enclosure TEFC
Full Load Efficiency 72
Frame 56C
Frequency 60 Hz
HP 1.5 HP
HP2 1-1/2 HP
Insulation Class B
kW 1.1kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Round
Number of Poles 2
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 17.0/8.5
Rated Voltage 115/230
Rotation Selective Counterclockwise
RPM 3450
Service Factor 1
Shaft Diameter 0.625″
Speed 3450
Starting Method
