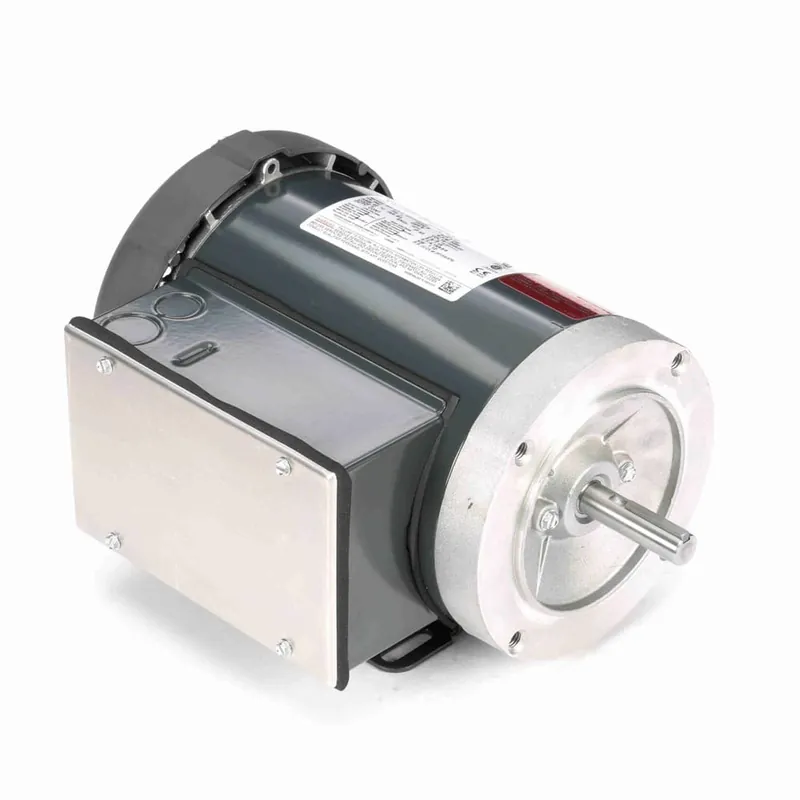

1.50HP 1PH 56C 2P TEFC 3450 115/208-230V WB

Description

Product Information

Brand Leeson
Mfr # D314
Wright’s # LSN D314
Country of Origin MEX

Specifications

C Dim 12.82″
Electrical Type Capacitor Start Capacitor Run
Enclosure TEFC
Full Load Efficiency 78.5
Frame 56C
Frequency 60 Hz
HP 1.5 HP
HP2 1-1/2 HP
Insulation Class B
kW 1.1kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Bolt-on Base
Number of Poles 2
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 14.2/7.7-7.1
Rated Voltage 115/208-230
Rotation Selective Counterclockwise
RPM 3450
Service Factor 1.15
Shaft Diameter 0.625″
Speed 3450
Starting Method
