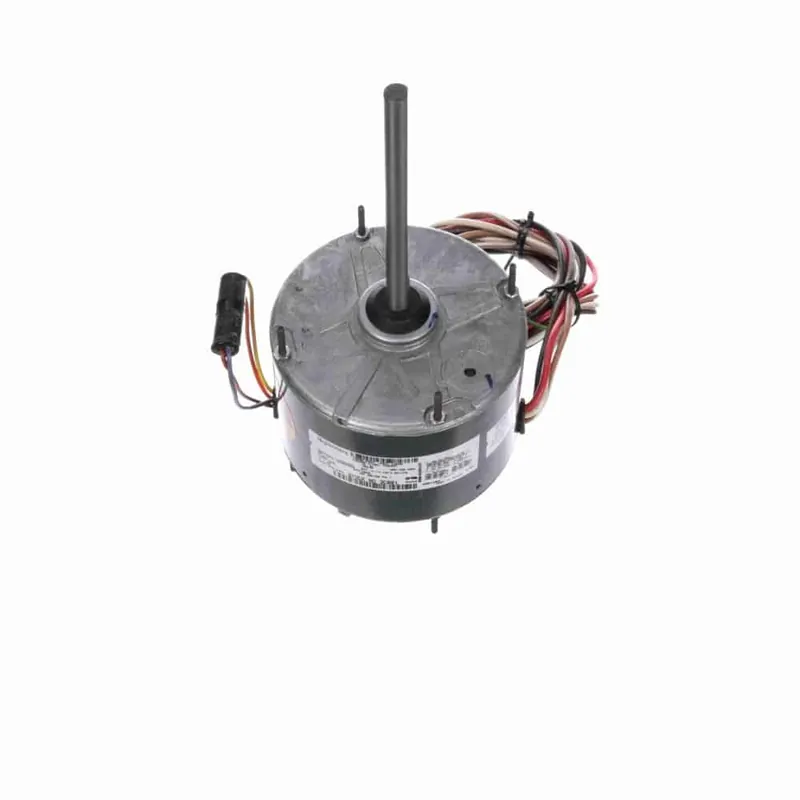

1/4HP PSC 5.6″ TE 2spd 1625 REV 208-230V 5uF CF

Description

Product Information

Brand Genteq
Mfr # 3C001
Wright’s # GEN 3C001

Specifications

C Dim 11.21″
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 5.6″
Frequency 60 Hz
HP 0.25 HP
HP2 1/4 HP
Insulation Class B
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 2
Overload Protection Thermally Protected
Phase 1
Rated Current 1.30
Rated Voltage 208-230
Rotation Reversible
RPM 1625
Service Factor 1
Shaft Diameter 0.5″
Speed 1625
