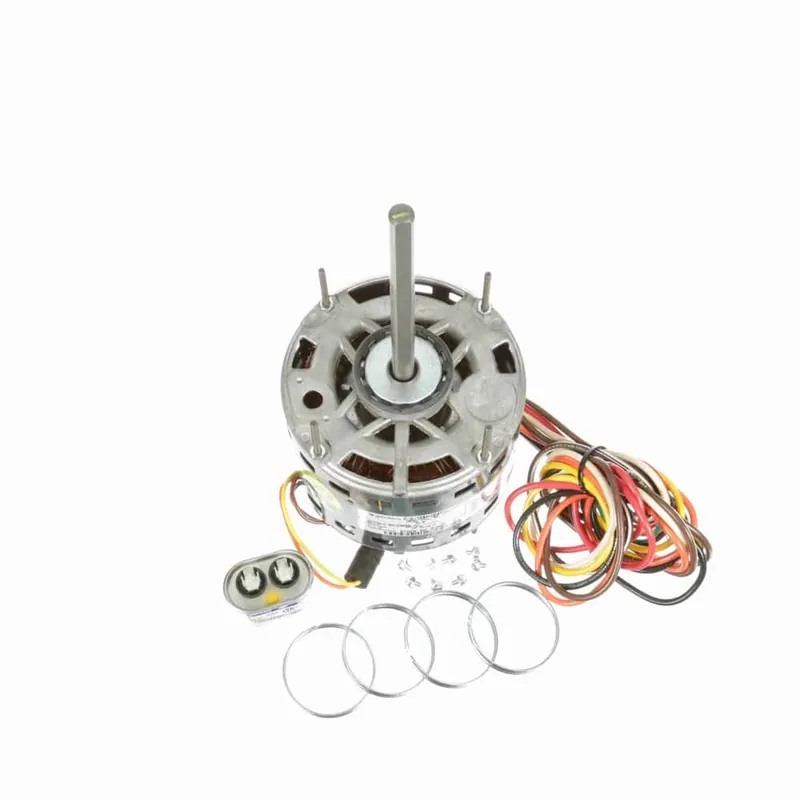

1/4HP PSC 5.6″ OAO 4spd 1075 REV 277/230V 5uF-inc BM

Description

Product Information

Brand Genteq
Mfr # 3D002
Wright’s # GEN 3D002

Specifications

C Dim 11.89″
Electrical Type Permanent Split Capacitor
Enclosure OAO
Frame 5.6″
Frequency 60 Hz
HP 0.25 HP
HP2 1/4 HP
Insulation Class B
kW 0.19kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 6
Number of Speeds 4
Overload Protection Thermally Protected
Phase 1
Rated Current 1.10
Rated Voltage 277/230
Rotation Reversible
RPM 1075
Service Factor 1
Shaft Diameter 0.5″
Speed 1075
