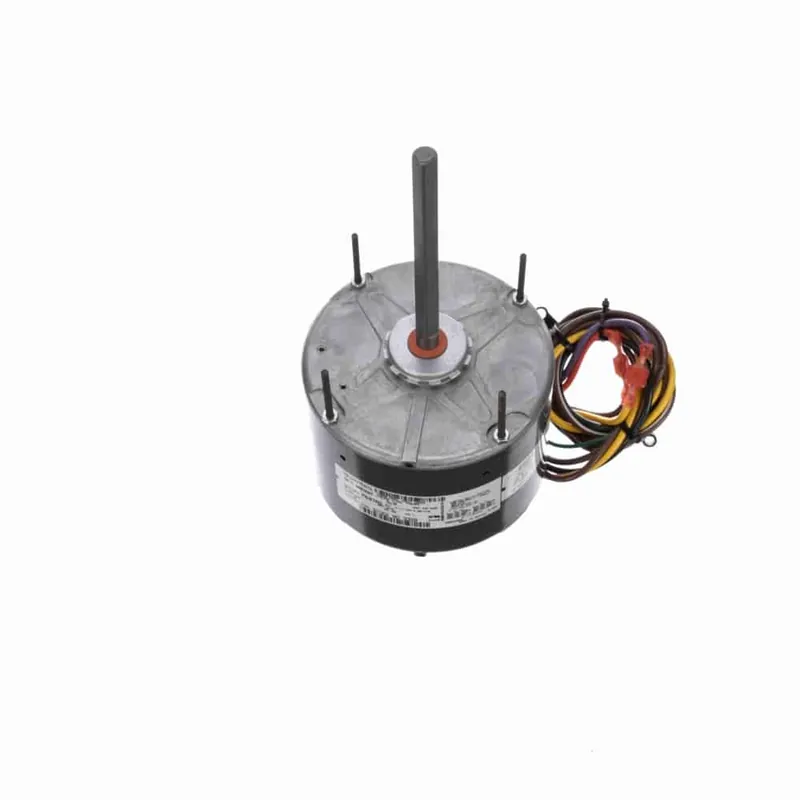

1/4HP PSC 5.6″ OAO 1075 REV 208-230V 5uF CF

Description

Product Information

Brand Genteq
Mfr # 3328
Wright’s # GEN 3328

Specifications

C Dim 11.13″
Electrical Type Permanent Split Capacitor
Enclosure OAO
Frame 5.6″
Frequency 60 Hz
HP 0.25 HP
HP2 1/4 HP
Insulation Class B
Material Rolled Steel
MaAmbient 60°C
Number of Poles 6
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 1.80
Rated Voltage 208-230
Rotation Reversible
RPM 1075
Service Factor 1
Shaft Diameter 0.5″
Speed 1075
