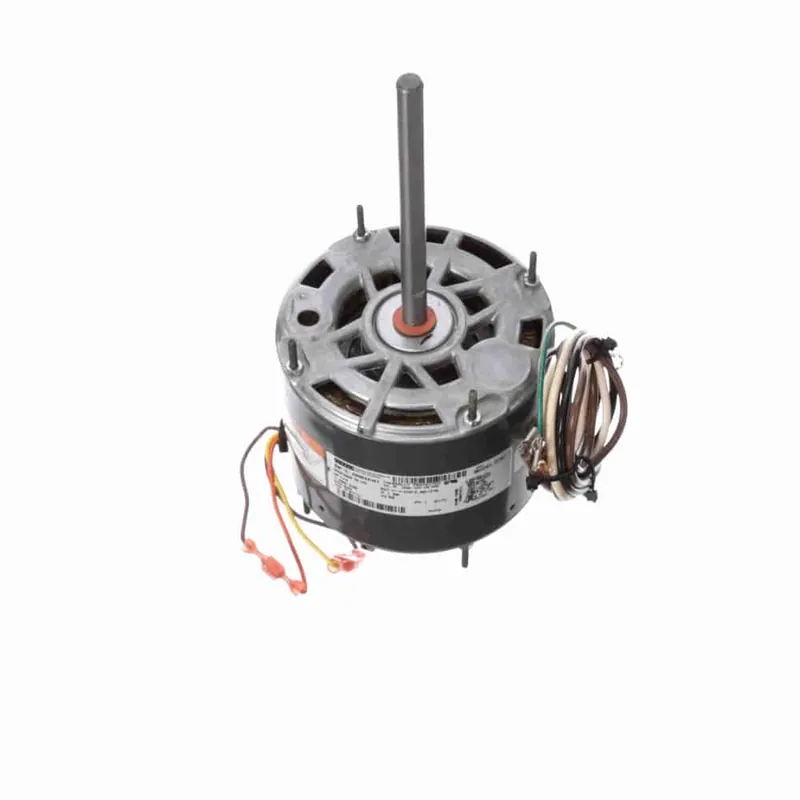

1/4HP PSC 5.6″ 825 REV 208-230V 5uF CF

Description

Product Information

Brand Fasco
Mfr # D797
Wright’s # FAS D797

Specifications

C Dim 10.98″
Electrical Type Permanent Split Capacitor
Enclosure OAO
Frame 5.6″
Frequency 60 Hz
HP 0.25 HP
HP2 1/4 HP
Insulation Class B
kW 0.19kW
Material Rolled Steel
MaAmbient 60°C
Number of Poles 8
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 1.60
Rated Voltage 208-230
Rotation Counterclockwise/Clockwise
RPM 825
Service Factor 1
Shaft Diameter 0.5″
