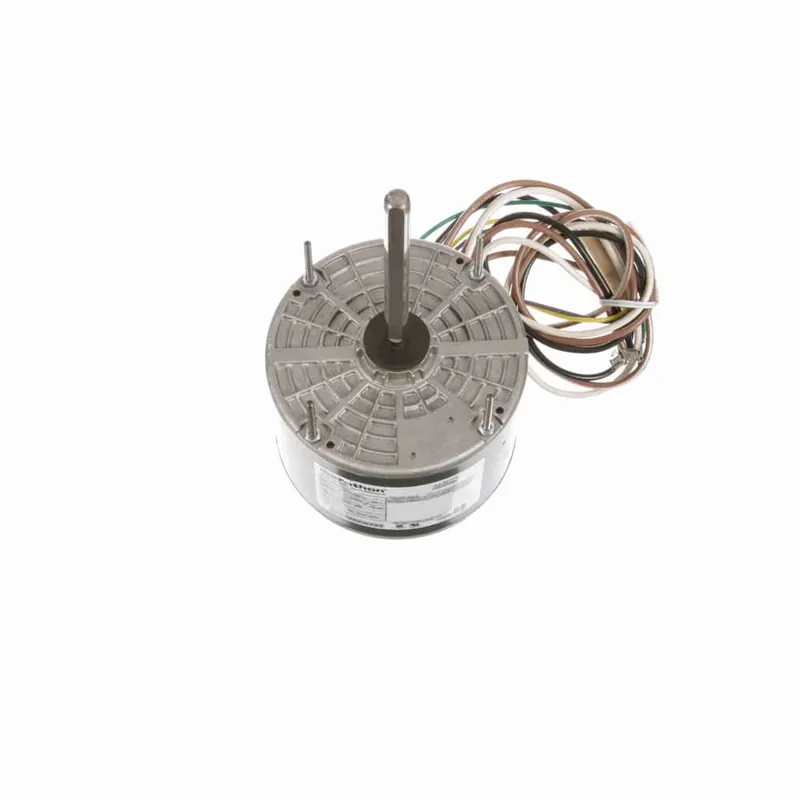

1/4HP PSC 48Z OAO 1075 208-230V CF

Description

Product Information

Brand Marathon
Mfr # X213
Wright’s # MAR X213
Country of Origin MEX

Specifications

C Dim 11.18″
Electrical Type Permanent Split Capacitor
Enclosure Open Air Over
Full Load Efficiency 66
Frame 48Z
Frequency 60
HP 0.25 HP
HP2 0.25 HP
Insulation Class B
kW 0.19kW
Material Rolled Steel
MaAmbient 60°C
Mounting Type Round – Extended Studs
Number of Poles 6
Number of Speeds 1
Overload Protection AOL
Phase 1
Rated Current 1.4-1.2
Rated Voltage 208-230V
Rotation Selective Counterclockwise
RPM 1075
Service Factor 1
Shaft Diameter 0.5″
Speed 1075
Starting Method
