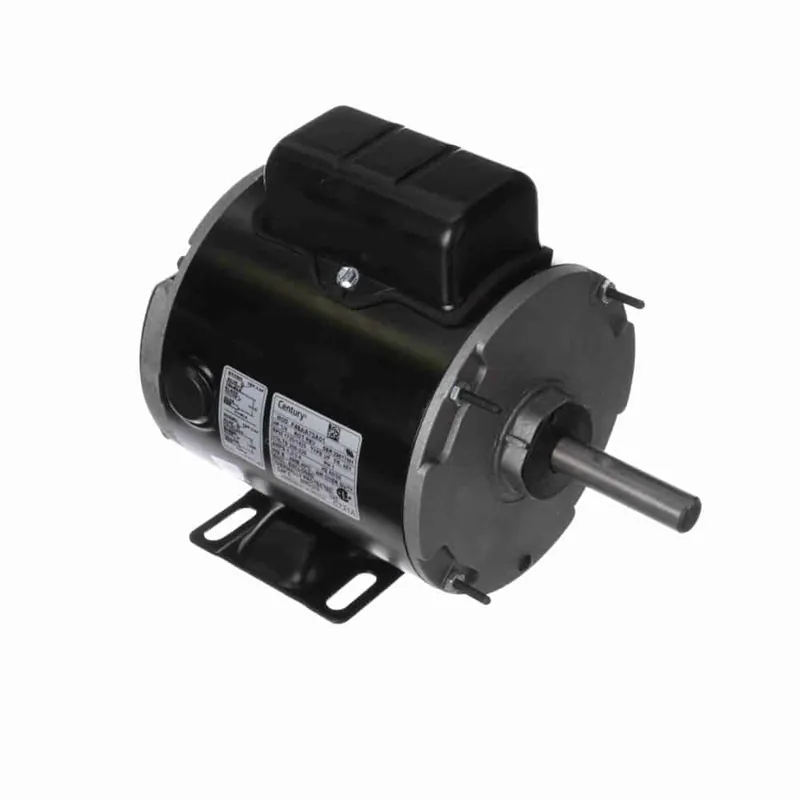

1/4HP PSC 48Y TE 2spd 1725 208-230V 5uF-inc

Description

Product Information

Brand Century
Mfr # C721A
Wright’s # CEN C721A

Specifications

C Dim 9.39″
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 48Y
Frequency 60 Hz
HP 0.25 HP
HP2 1/4 HP
Insulation Class B
kW 0.19kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 2
Overload Protection Automatic
Phase 1
Rated Current 1.2/1.4
Rated Voltage 208-230
Rotation Reversible
RPM 1725
Service Factor 1
Shaft Diameter 0.625″
Speed 1725/1425
Starting Method
