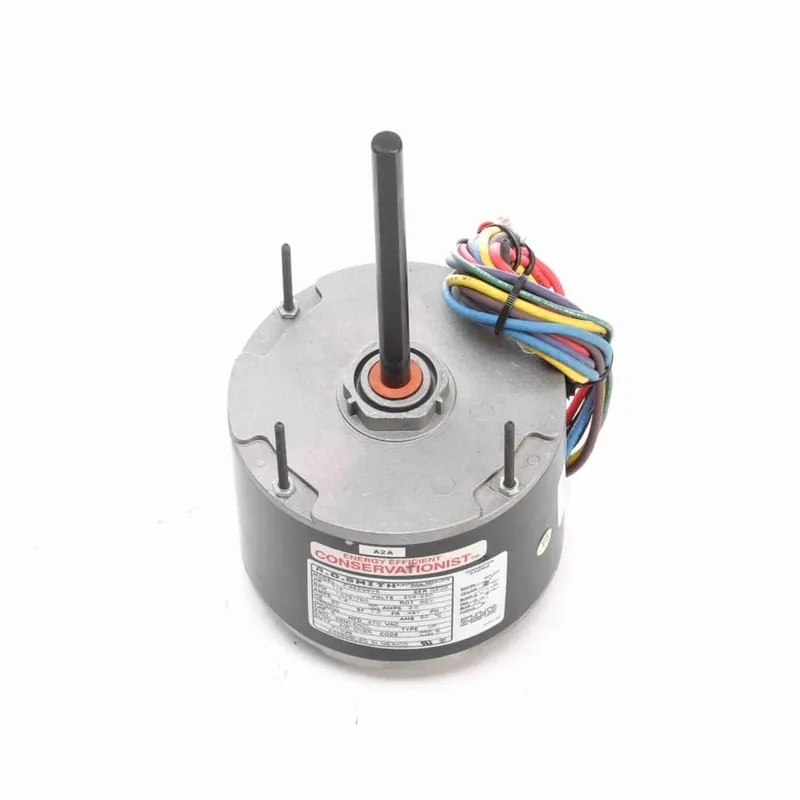

1/4HP PSC 48Y TE 2spd 1075 208-230V 5uF CF

Description

Product Information

Brand Century
Mfr # F1026
Wright’s # CEN F1026

Specifications

C Dim 10.99″
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 48Y
Frequency 60 Hz
HP 0.25 HP
HP2 1/4 HP
Insulation Class B
kW 0.19kW
Material Rolled Steel
MaAmbient 60°C
Number of Poles 6
Number of Speeds 2
Overload Protection Automatic
Phase 1
Rated Current 1.4
Rated Voltage 208-230
Rotation Reversible
RPM 1075
Service Factor 1
Shaft Diameter 0.5″
Speed 1075/750
Starting Method
