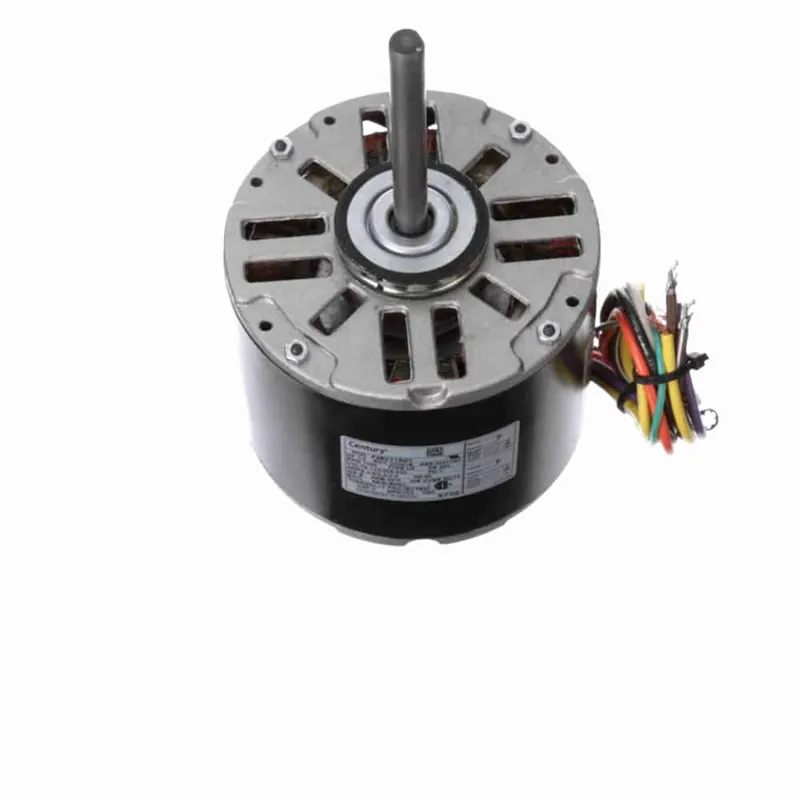

1/4HP PSC 48Y TE 1550 CWSE 115/208-230V 4uF BM

Description

Product Information

Brand Century
Mfr # 9700
Wright’s # CEN 9700
Country of Origin IND

Specifications

C Dim 9.49″
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 48Y
Frequency 60 Hz
HP 0.25 HP
HP2 1/4 HP
Insulation Class B
kW 0.19kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 4.9/2.5-2.5
Rated Voltage 115/208-230
Rotation Counterclockwise Lead End
RPM 1550
Service Factor 1
Shaft Diameter 0.5″
Speed 1550
Starting Method
