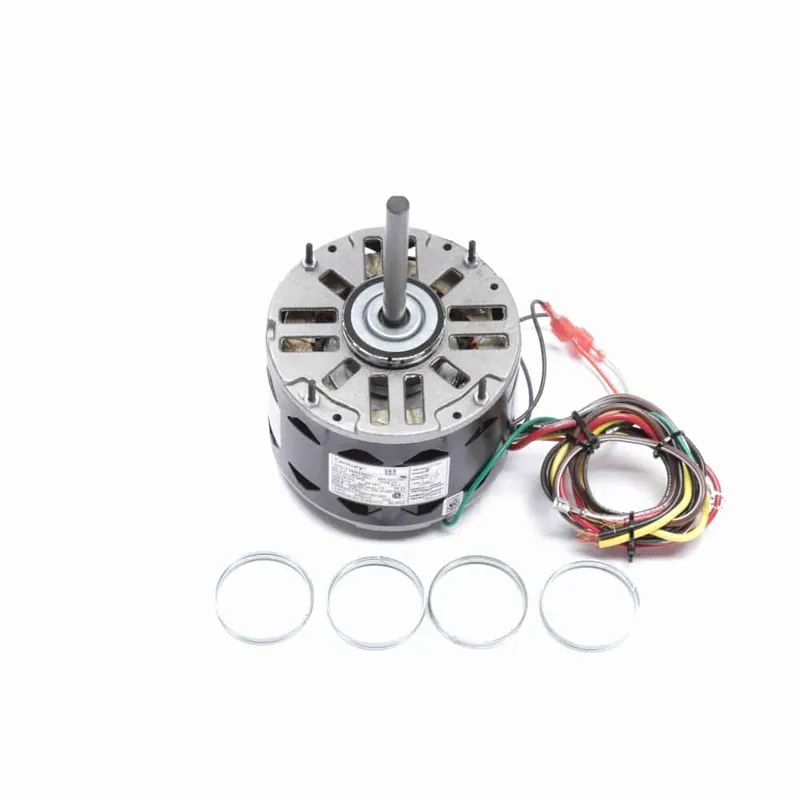

1/4HP PSC 48Y ODP 2spd 1075 115V 5uF BM

Description

Product Information

Brand Century
Mfr # DL001
Wright’s # CEN DL001

Specifications

C Dim 9.11″
Electrical Type Permanent Split Capacitor
Enclosure ODP
Frame 48Y
Frequency 60 Hz
HP 0.25 HP
HP2 1/4 HP
Insulation Class B
kW 0.19kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 6
Number of Speeds 2
Overload Protection Automatic
Phase 1
Rated Current 3.5
Rated Voltage 115
Rotation Reversible
RPM 1075
Service Factor 1
Shaft Diameter 0.5″
Speed 1075
Starting Method
