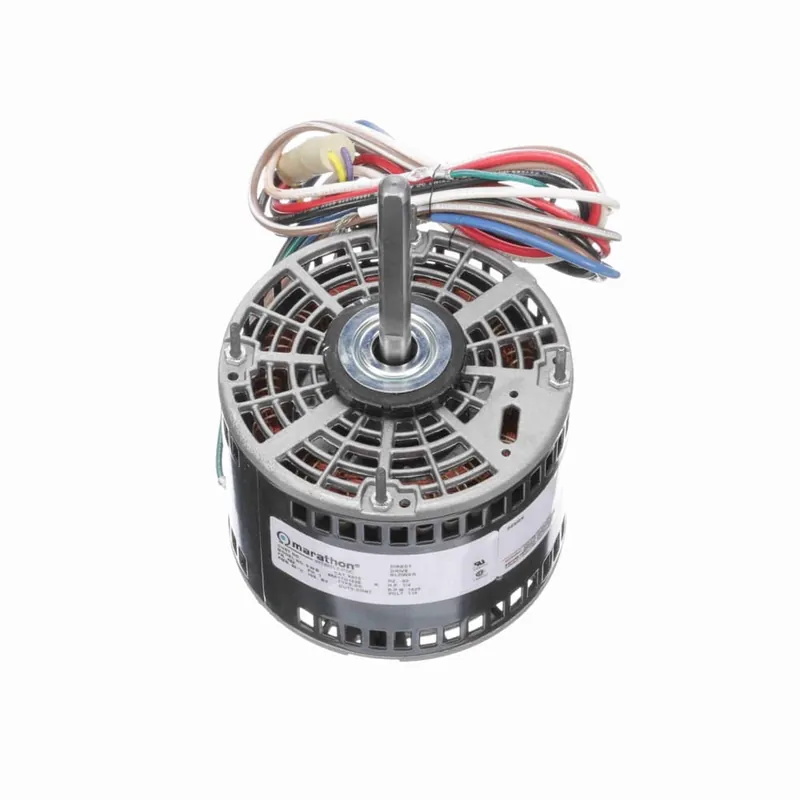

1/4HP PSC 48Y OAO 3spd 1625 115V BM

Description

Product Information

Brand Marathon
Mfr # X013
Wright’s # MAR X013
Country of Origin MEX

Specifications

C Dim 10″
Electrical Type Permanent Split Capacitor
Enclosure ODP
Full Load Efficiency 60
Frame 48Y
Frequency 60 Hz
HP 0.25 HP
HP2 1/4 HP
Insulation Class B
kW 0.19kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Resilient Ring – Extended Studs
Number of Poles 4
Number of Speeds 3
Overload Protection Automatic
Phase 1
Rated Current 2.9
Rated Voltage 115
Rotation Selective Counterclockwise
RPM 1625
Service Factor 1
Shaft Diameter 0.5″
Speed 1625
Starting Method
