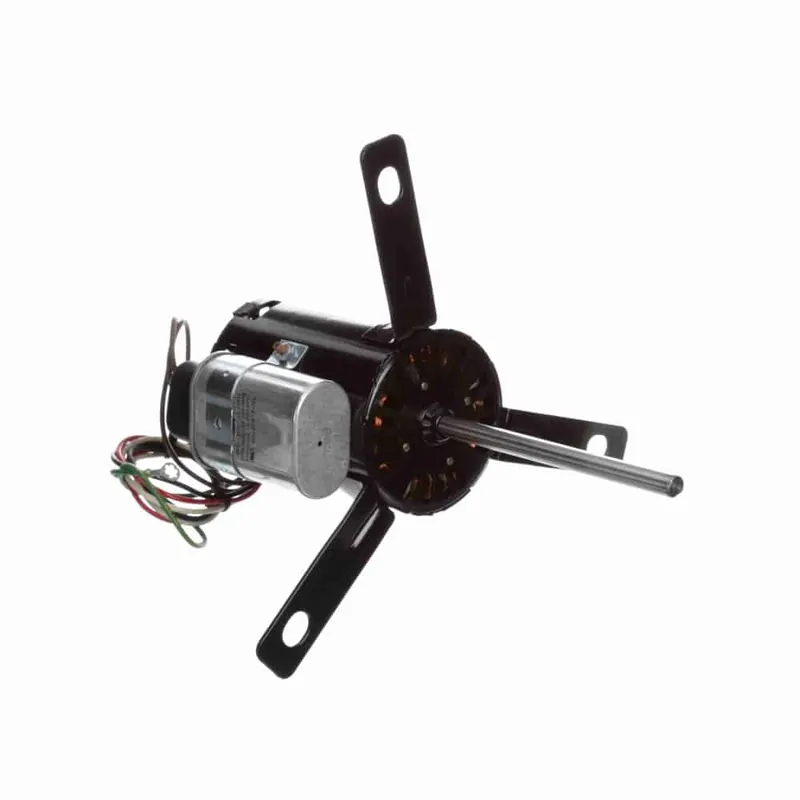

1/4HP PSC 3.3″ 2spd 1550 CWSE 115V 5uF-inc

Description

Product Information

Brand Fasco
Mfr # D0346
Wright’s # FAS D0346
Country of Origin MEX

Specifications

C Dim 10.12″
Electrical Type Permanent Split Capacitor
Enclosure OAO
Frame 3.3″
Frequency 60 Hz
HP 0.25 HP
HP2 1/4 HP
Insulation Class B
kW 0.19kW
Material Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 2
Overload Protection Thermally Protected
Phase 1
Rated Current 2.9
Rated Voltage 115
Rotation Clockwise Shaft End
RPM 1550
Service Factor 1
Shaft Diameter 0.375″
Starting Method
