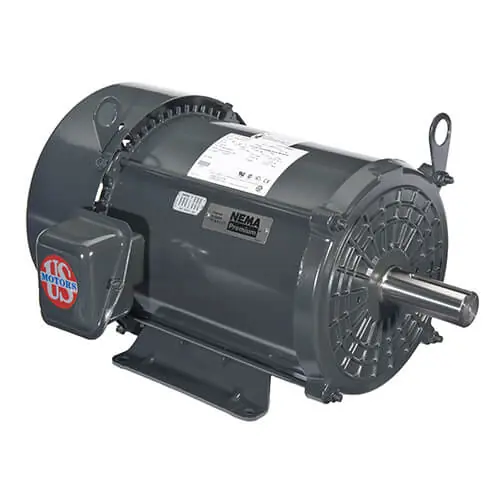

1/4HP 3PH 56C 1200 TEFC 208-230/460V NB

Description

Product Information

Brand US Motors
Mfr # T14S3DCR
Wright’s # USM T14S3DCR
Country of Origin MEX

Specifications

C Dim 11.3″
Electrical Type Polyphase
Enclosure TEFC
Frame 56C
Frequency 60 Hz
HP 0.25 HP
HP2 1/4 HP
Insulation Class B
kW 0.19kW
MaAmbient 40°C
Mounting Type C-FACE
Number of Poles 6
Number of Speeds 1
Overload Protection None
Phase 3
Rated Current 1.4-1.4/0.7
Rated Voltage 208-230/460V
RPM 1140
Service Factor 1.15
