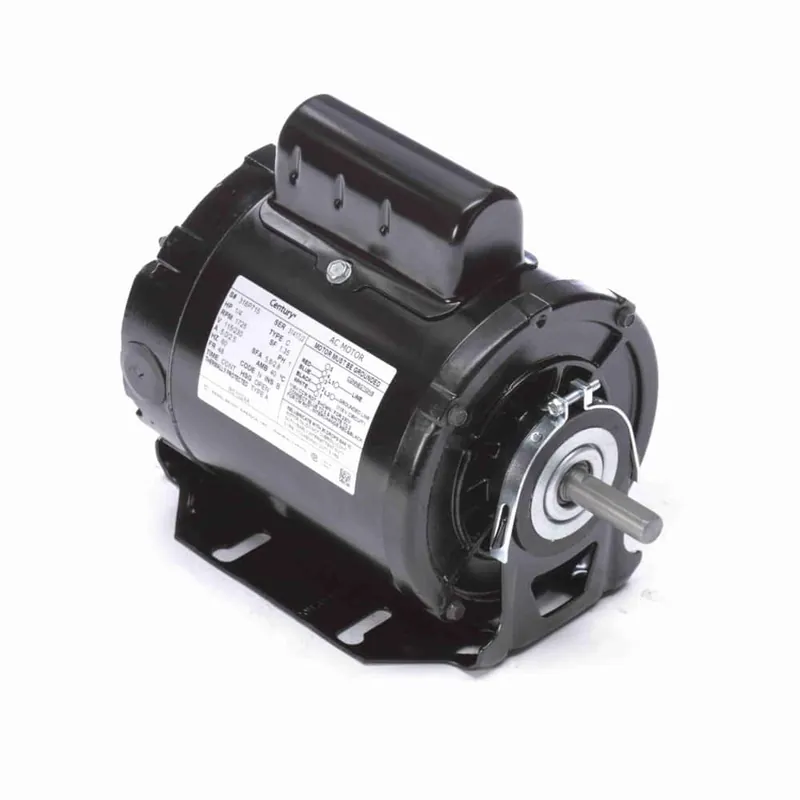

1/4HP 1PH 5.6″ ODP 1725 115/230V BM

Description

Product Information

Brand Century
Mfr # RS1024A
Wright’s # CEN RS1024A
Country of Origin MEX

Specifications

C Dim 9.46″
Electrical Type Capacitor Start Induction Run
Enclosure ODP
Frame 48
Frequency 60 Hz
HP 0.25 HP
HP2 1/4 HP
Insulation Class B
kW 0.19kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 5.0/2.5
Rated Voltage 115/230
Rotation Reversible
RPM 1725
Service Factor 1.35
Shaft Diameter 0.5″
Speed 1725
Starting Method
