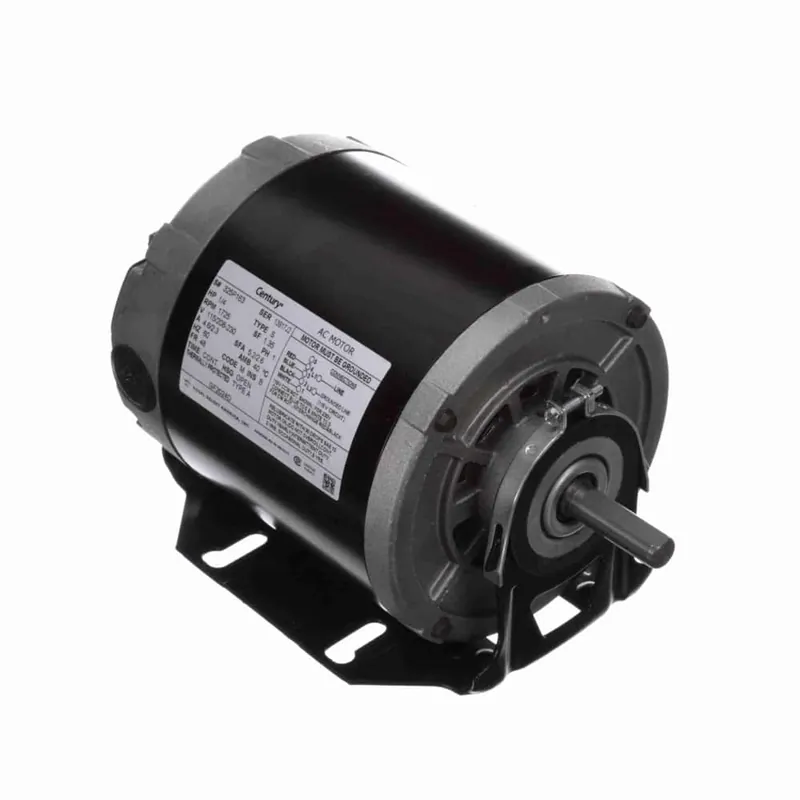

1/4HP 1PH 5.6″ ODP 1725 115/208-230V BM

Description

Product Information

Brand Century
Mfr # GF2024D
Wright’s # CEN GF2024D
Country of Origin MEX

Specifications

C Dim 9.21″
Electrical Type Split Phase
Enclosure ODP
Frame 48
Frequency 60 Hz
HP 0.25 HP
HP2 1/4 HP
Insulation Class B
kW 0.19kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 4.6/2.3
Rated Voltage 115/208-230
Rotation Reversible
RPM 1725
Service Factor 1.35
Shaft Diameter 0.625″
Speed 1725
Starting Method
