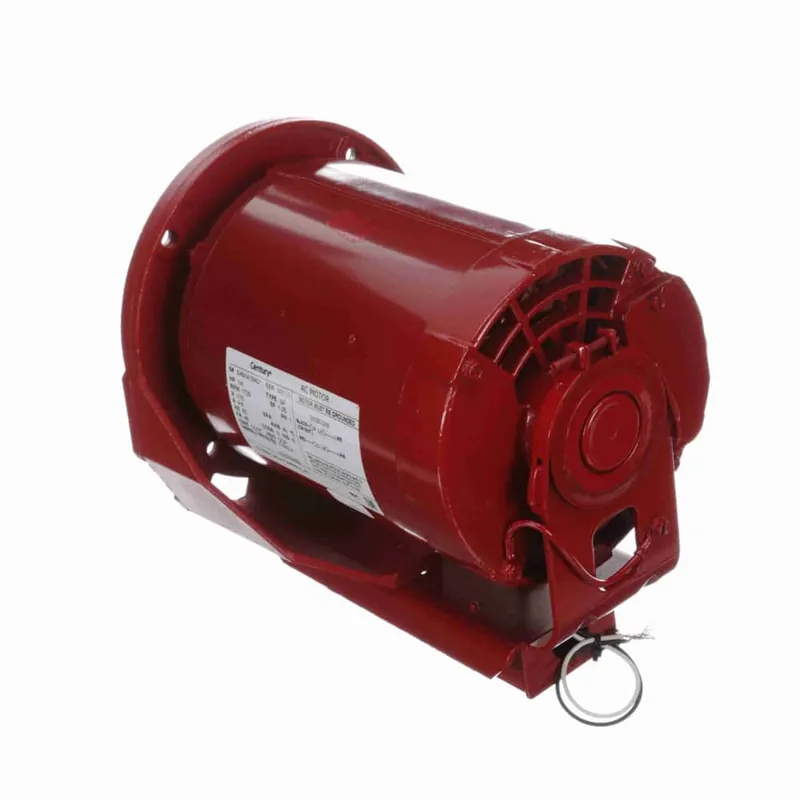

1/4HP 1PH 5.6″ 4P ODP 1800 115V AOL CIRC

Description

Product Information

Brand Century
Mfr # HW2024BL
Wright’s # CEN HW2024BL
Country of Origin MEX

Specifications

C Dim 8.96″
Electrical Type Split Phase, Induction Run, Single Or Dual Voltage
Enclosure ODP
Frame 48
Frequency 60 Hz
HP 0.25 HP
HP2 1/4 HP
Insulation Class B
kW 0.19kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 4.6
Rated Voltage 115
Rotation Reversible
RPM 1725
Service Factor 1.25
Shaft Diameter 0.5″
Speed 1800
Starting Method
