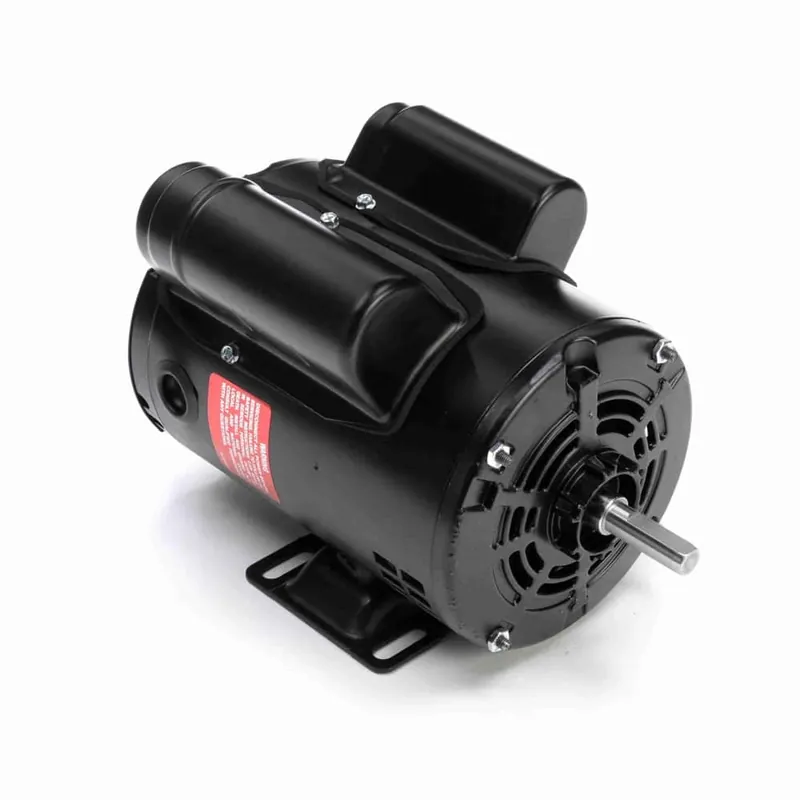

1/4HP 1PH 5.6″ 4P ODP 1800 115/230V OBSO

Description

Product Information

Brand Century
Mfr # OB1024ES
Wright’s # CEN OB1024ES
Country of Origin MEX

Specifications

C Dim 10.34″
Electrical Type Capacitor Start Capacitor Run
Enclosure ODP
Frame 48
Frequency 60/50 Hz
HP 0.25 HP
HP2 1/4 HP
Insulation Class B
kW 0.19kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 2.4/1.2
Rated Voltage 115/230
Rotation Reversible Counterclockwise
RPM 1725
Service Factor 1.35
Shaft Diameter 0.5″
Speed 1800
Starting Method
