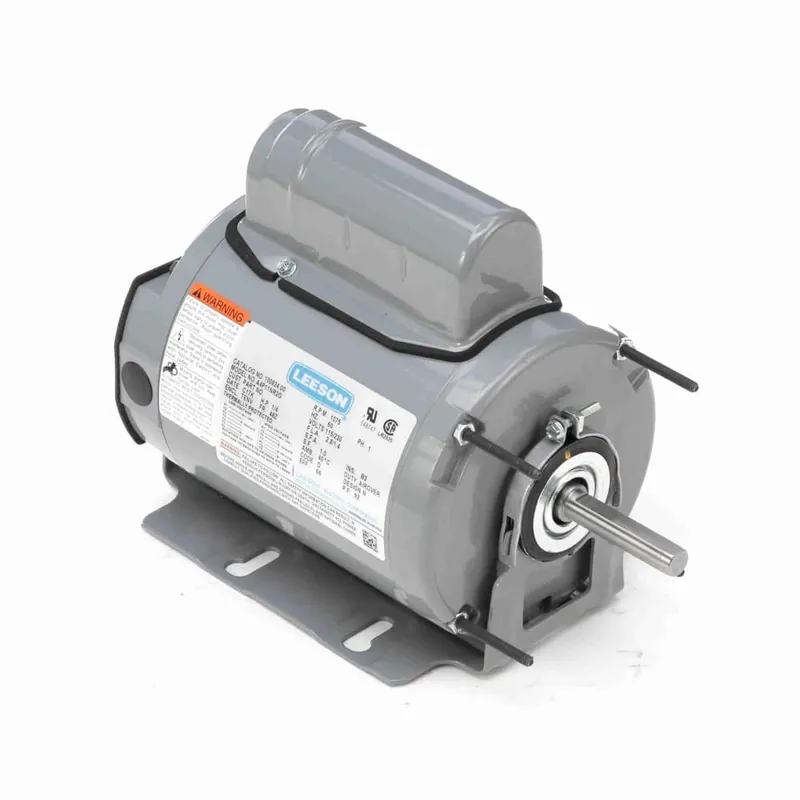

1/4HP 1PH 48Z TEAO 1075 PSC 115/230V AOL Farm

Description

Product Information

Brand Leeson
Mfr # 100824.00
Wright’s # LSN 100824.00
Country of Origin MEX

Specifications

C Dim 10.66″
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Full Load Efficiency 66
Frame 48Z
Frequency 60 Hz
HP 0.25 HP
HP2 1/4 HP
Insulation Class B
kW 0.19kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Resilient Base
Number of Poles 6
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 2.8/1.4
Rated Voltage 115/230
Rotation Selective Counterclockwise
RPM 1075
Service Factor 1
Shaft Diameter 0.5″
Speed 1075
Starting Method
