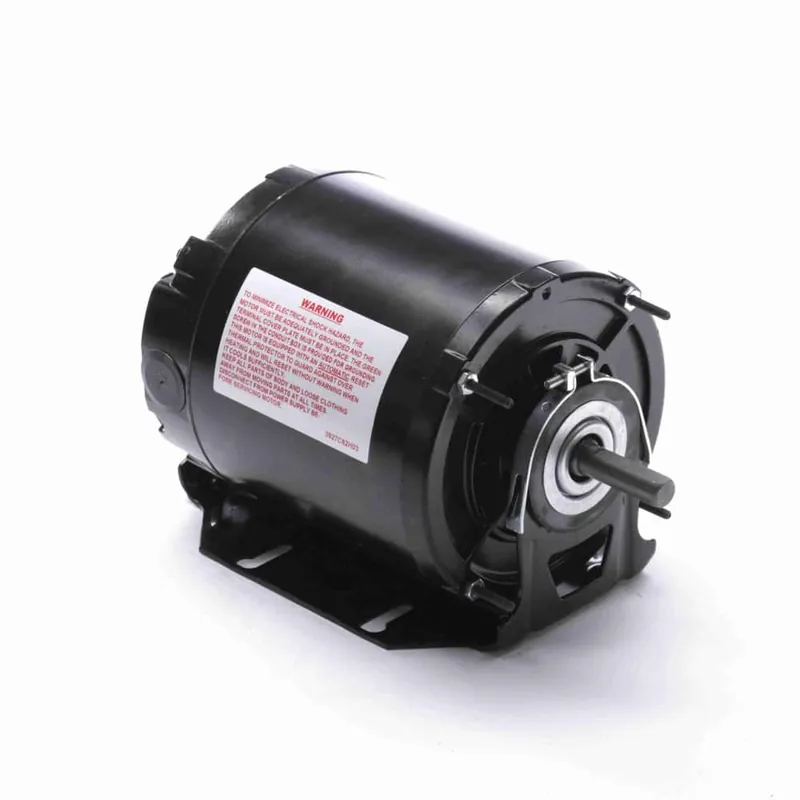

1/4HP 1PH 48Y TE 1725 REV 115/208-230V BM

Description

Product Information

Brand Century
Mfr # ARB2024L3
Wright’s # CEN ARB2024L3
Country of Origin MEX

Specifications

C Dim 9.42″
Electrical Type Split Phase
Enclosure TEAO
Frame 48Y
Frequency 60 Hz
HP 0.25 HP
HP2 1/4 HP
Insulation Class B
kW 0.19kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 3.3/1.7-1.7
Rated Voltage 115/208-230
Rotation Reversible
RPM 1725
Service Factor 1
Shaft Diameter 0.5″
Speed 1725
Starting Method
