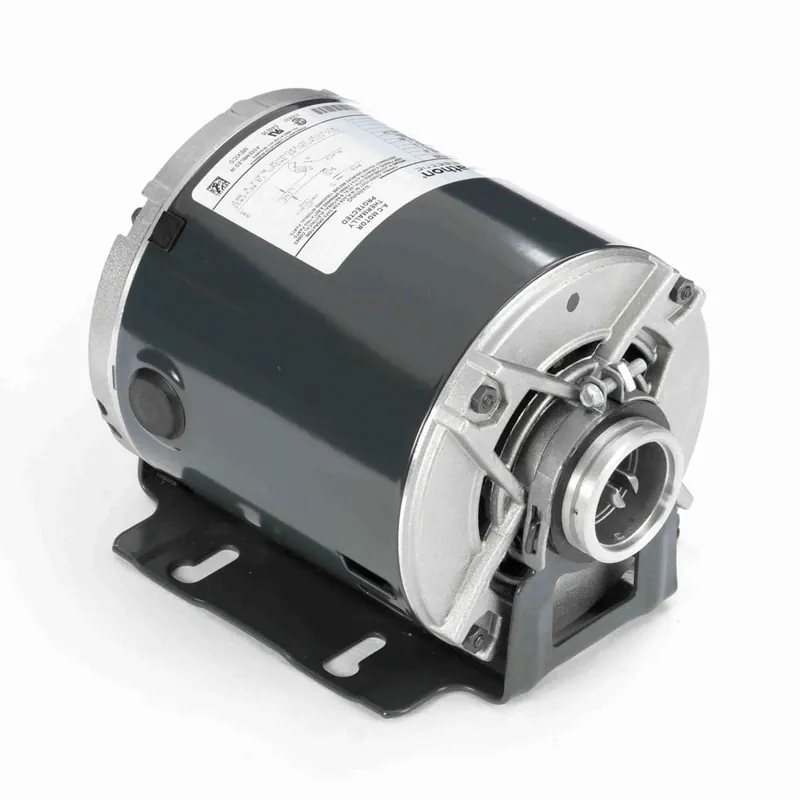

1/4HP 1PH 48Y ODP 1800 115V AOL

Description

Product Information

Brand Leeson
Mfr # 4725
Wright’s # LSN 4725
Country of Origin MEX

Specifications

C Dim 7.79″
Electrical Type Capacitor Start Induction Run
Enclosure DP
Full Load Efficiency 52.5
Frame 48Y
Frequency 60 Hz
HP 0.25 HP
HP2 1/4 HP
Insulation Class B
kW 0.19kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Resilient Base
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 5
Rated Voltage 115
Rotation Counterclockwise/Clockwise
RPM 1725
Service Factor 1
Shaft Diameter 0.625″
Speed 1725
Starting Method
