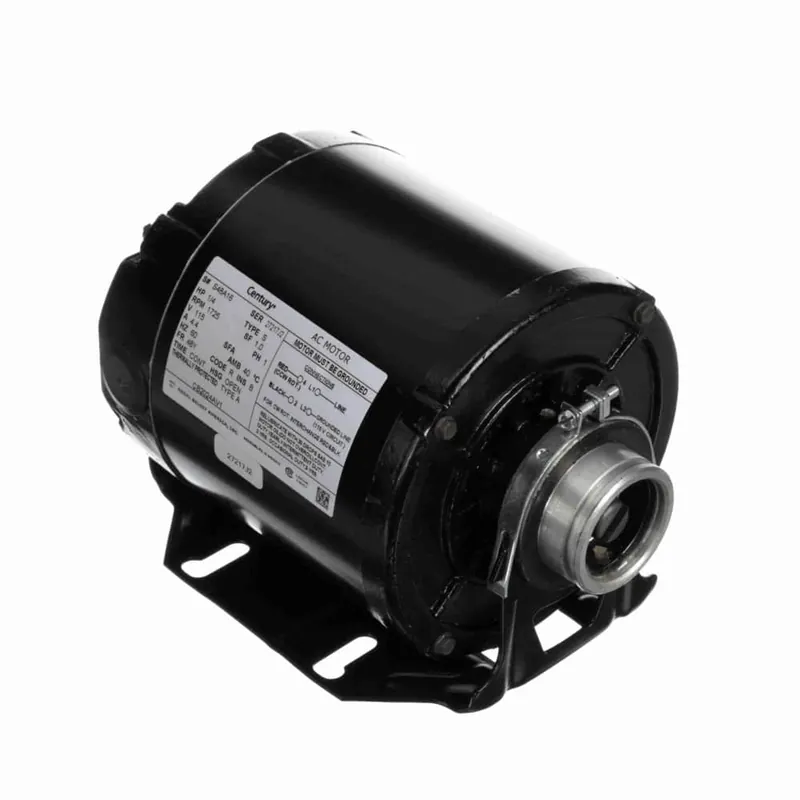

1/4HP 1PH 48Y 4P ODP 1725 115/230V AOL

Description

Product Information

Brand Century
Mfr # CB2024AD
Wright’s # CEN CB2024AD
Country of Origin MEX

Specifications

C Dim 8.57″
Electrical Type Split Phase
Enclosure ODP
Frame 48Y
Frequency 60/50 Hz
HP 0.25 HP
HP2 1/4 HP
Insulation Class B
kW 0.19kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 4.0/2.0
Rated Voltage 115/230
Rotation Counterclockwise
RPM 1725
Service Factor 1
Shaft Diameter 0.625″
Speed 1725/1425
Starting Method
