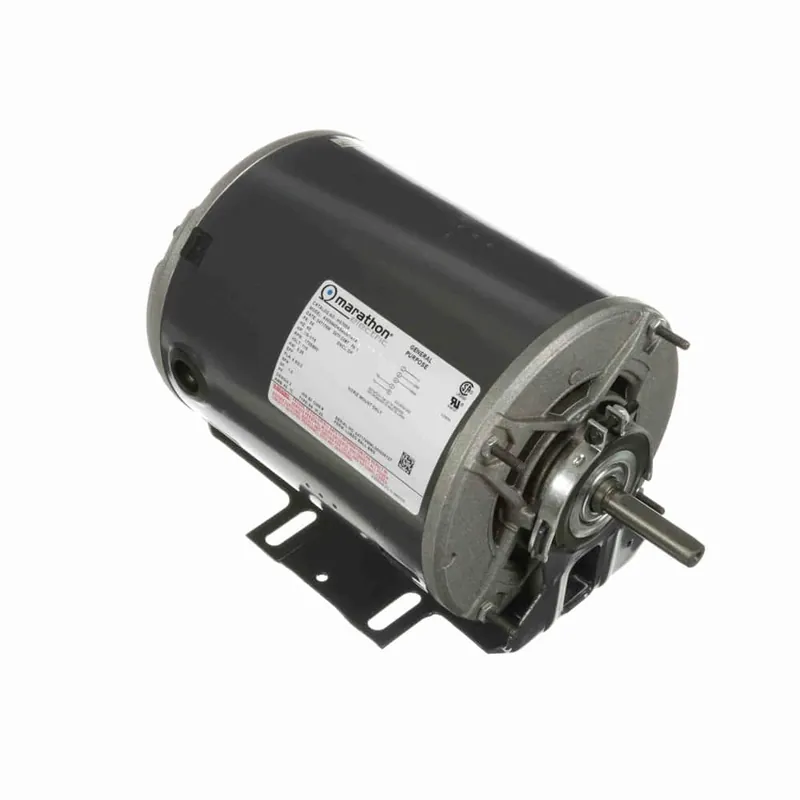

1/3HP SpP 56Z ODP 2spd 1725 115V BM

Description

Product Information

Brand Marathon
Mfr # HG705A
Wright’s # MAR HG705A
Country of Origin MEX

Specifications

C Dim 11.54″
Electrical Type Split Phase
Enclosure ODP
Full Load Efficiency 68.5
Frame 56Z
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Resilient Base
Number of Poles 4/8
Number of Speeds 2
Overload Protection Automatic
Phase 1
Rated Current 4.6 & 2.2
Rated Voltage 115
Rotation Selective Clockwise
RPM 1725
Service Factor 1
Shaft Diameter 0.625″
Speed 1725 & 850
Starting Method
