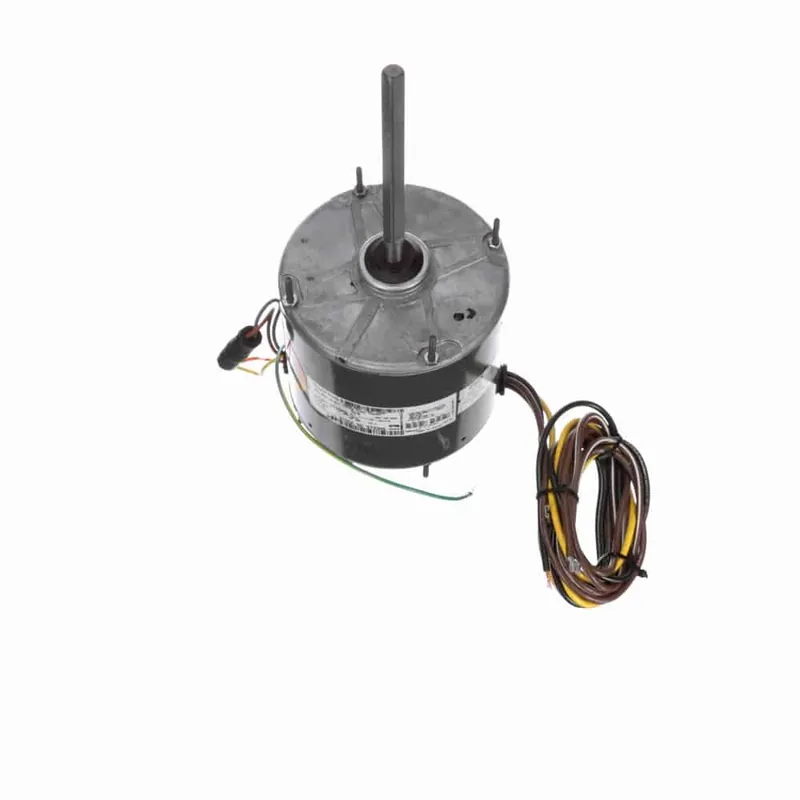

1/3HP PSC 5.6″ TE 1075 REV 208-230V 5uF CF

Description

Product Information

Brand Genteq
Sub-Brand HEAT SHIELD®
Mfr # 3733HS
Wright’s # GEN 3733HS

Specifications

C Dim 12.21″
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 5.6″
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
MaAmbient 70°C
Number of Poles 6
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 2.60
Rated Voltage 208-230
Rotation Reversible
RPM 1075
Service Factor 1
Shaft Diameter 0.5″
Speed 1075
