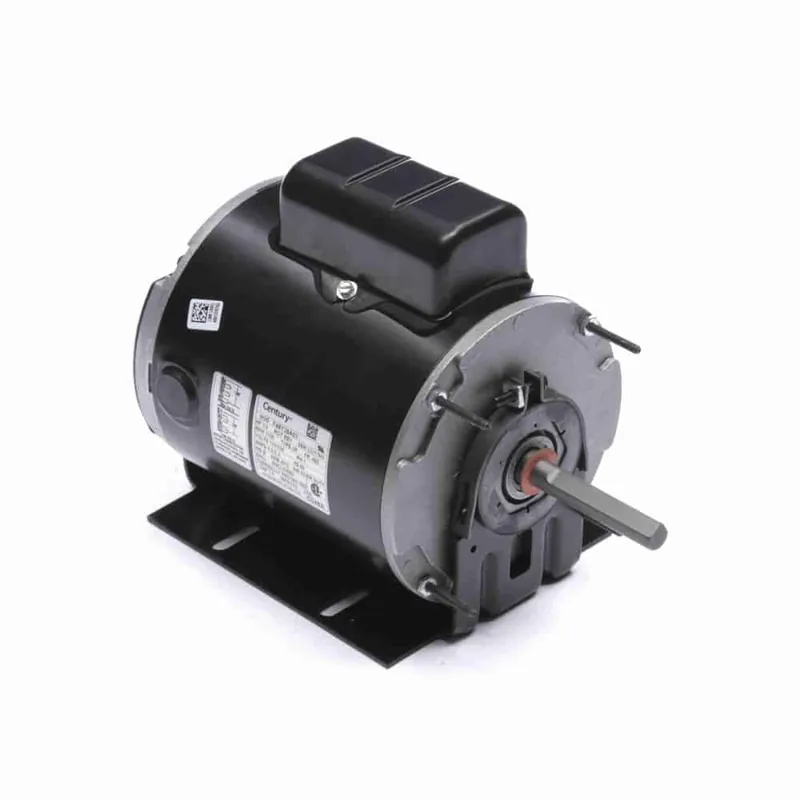

1/3HP PSC 48Z 6P TEAO 1100 115/230V 5uF-inc AOL BM

Description

Product Information

Brand Century
Mfr # C046A
Wright’s # CEN C046A
Country of Origin MEX

Specifications

C Dim 10.01″
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 48Z
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 6
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 4.5/2.3
Rated Voltage 115/230
Rotation Reversible
RPM 1100
Service Factor 1
Shaft Diameter 0.5″
Speed 1100
Starting Method
